Features: Four 8-Bit D/A Converters
Microprocessor Compatible
TTL/CMOS Compatible
Single Supply Operation Possible
CMOS TechnologyApplication Process Control
Automatic Test Equipment
Automatic Calibration of Large System

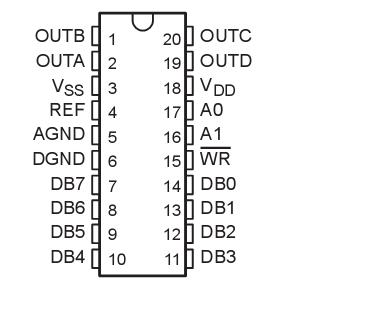

Parameters, e.g. Gain/OffsetPinout
SpecificationsSupply voltage range, VDD : AGND or DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 17 V
VSS+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 24
Supply voltage range, V SS: AGND or DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V to 0.3 V
Voltage range between AGND and DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . . 17 V to 17 V
Input voltage range, V I(to DGND) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to V DD + 0.3 V
Reference voltage range: V ref (to AGND) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 0.3 V to VDD
V ref (to VSS ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ........................................ 0.3 V to 20 V
Output voltage range, V O (to AGND) (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VSS to VDD
Continuous total power dissipation at (or below) T A= 25 (see Note 2) . . . . . . . . . . . . . . . .. . . . . . . . 500 mW
Operating free-air temperature range, T A: C suffix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 to 70
E suffix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ................................................................ . . 25°C to 85°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -65 to 150
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: DW or N packages . . . . . ..... . . . . . . . . 260°CDescriptionThe TLC7226C and TLC7226E consist of four 8-bit voltage-output digital-to-analog converters (DACs) with output buffer amplifiers and interface logic on a single monolithic chip.
Separate on-chip latches are provided for each of the four DACs. Data is transferred into one of these data latches through a common 8-bit TTL/CMOS-compatible 5-V input port. Control inputs A0 and A1 determine which DAC is loaded when WR goes low. The control logic is speed compatible with most 8-bit microprocessors. Each TLC7226E includes an output buffer amplifier capable of sourcing up to 5 mA of output current.
The TLC7226E performance is specified for input reference voltages from 2 V to V 4 V with dual supplies.The voltage mode configuration of the DACs allows the TLC7226 to be operated from a single power supply rail at a reference of 10 V.
The TLC7226E is fabricated in a LinBiCMOS(TM) process that has been specifically developed to allow high-speed digital logic circuits and precision analog circuits to be integrated on the same chip. The TLC7226 has a common 8-bit data bus with individual DAC latches. This provides a versatile control architecture for simple interface to microprocessors. All latch-enable signals are level triggered. Combining four DACs, four operational amplifiers, and interface logic into either a 0.3-inch wide, 20-terminal dual-in-line IC (DIP) or a small 20-terminal small-outline IC (SOIC) allows a dramatic reduction in board space requirements and offers increased reliability in systems using multiple converters. The pinout is aimed at optimizing board layout with all of the analog inputs and outputs at one end of the package and all of the digital inputs at the other.
The TLC7226C is characterized for operation from 0°C to 70°C. The TLC7226E is characterized for operation from 25°C to 85°C.
