TLC5921

PinoutSpecificationsSupply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . 0.3 V to 7 VOutput current (dc), IO(LC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90 mAInput voltage range, VI...

product image

TLC5921 Picture
See larger image
SeekIC No. : 004520704 Detail

TLC5921: PinoutSpecificationsSupply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . 0.3 V to 7 VOutput current (dc), IO(LC) . . . . . . . . . . . ....

TLC5921 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLC5921
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

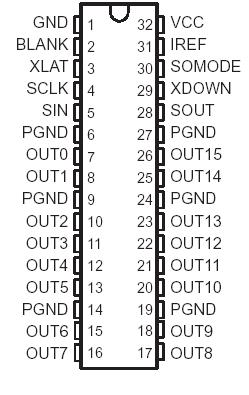

Connection Diagram


Specifications

Supply voltage, VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . 0.3 V to 7 V
Output current (dc), IO(LC)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90 mA
Input voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.3 V to VCC + 0.3 V
Output voltage range, VO(SOUT), VO(XDOWN)  . . . . . . . . . . . . . . . . .. . . . 0.3 V to VCC + 0.3 V
Output voltage range, VO(OUTn)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 18 V
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to 150°C
Continuous total power dissipation at (or below) TA = 25°C . . . . . . . . . . . .   . . . . . . . . . 3.9 W
Power dissipation rating at (or above) TA = 25°C . . . . . . . . . . . . . . . . . . . . . .. . . .31.4 mW/°C
NOTE 1: All voltage values are with respect to GND terminal.


Description

The TLC5921 is a current-sink constant current driver incorporating shift register and data latch. The current value at constant current output can be set by one external register. The device also incorporates thermal shutdown (TSD) circuitry which turns constant current output off when the junction temperature exceeds the limit, and LED open detection (LOD) circuitry to report the LED was disconnected.
