Product Details

Description



Pinout

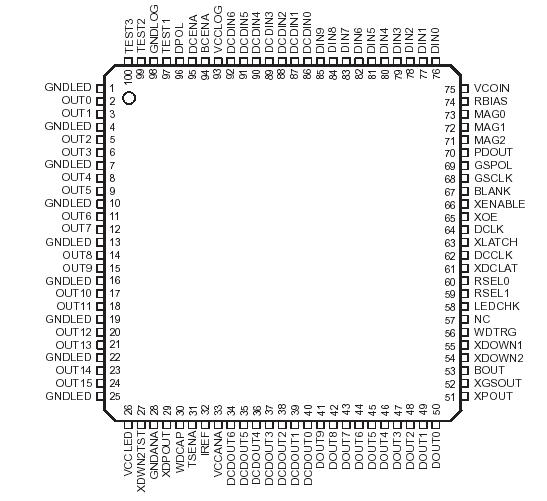

Connection Diagram


Specifications

Logic supply voltage, VCC(LOG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 7 V
Supply voltage for constant current circuit, VCC(LED) . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 7 V
Analog supply voltage, VCC(ANA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 7 V
Output current (DC), IOL(C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90 mA
Input voltage range, VI 0.3 V to VCC(LOG) . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . .+ 0.3 V
Output voltage range, V(SOUT), V(BOUT) and V(GSOUT) 0.3 V to VCC(LOG) . . . . .. . . . . +0.3 V
Output voltage range, V(OUTn) and V(XDOWNn) . . . . . . . . . . . . . . . . . . . . . . .. . . 0.3 V to 18 V
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40°C to 125°C
Continuous total power dissipation at (or below) TA = 25°C . . . . . . . . . . . . . . . . . . . . . . .4.9 W
Power dissipation rating at (or above) TA = 25°C. . . . . . . . . . . . . . . . . . . . . . . . . . 39.4 mW/°C
NOTE 1: All voltage values are with respect to GNDLOG terminal.


Description

The TLC5905 is a constant current driver that incorporates shift register, data latch, constant current circuitry with a current value adjustable and 256 gray scale display that uses pulse width control. The output current can be selected as maximum 80 mA with 16 bits or 120 mA with 8 bit. The current value of the constant current output
is set by one external resistor. After this device is mounted on a printed-circuit board (PCB), the brightness deviation between LED modules (ICs) TLC5905 can be adjusted using an external data input, and the brightness control for the panel can be accomplished by the brightness adjustment circuitry. Also, the device incorporates the output voltage monitor (OVM) used for LED open detection (LOD) by monitoring constant current output. Moreover, the TLC5905 incorporates watchdog timer (WDT) circuitry, which turns constant current output off when the scan signal stops during dynamic scanning operation, and thermal shutdown (TSD) circuitry, which turns constant current output off when the junction temperature exceeds the limit.
