TLC5502-5M

Features: • LinEPICE 1-mm CMOS Process• 8-Bit Resolution• Differential Linearity Error . . . ±0.2% Max• Maximum Conversion Rate . . . 20 MHz Typ . . . 10 MHz Min• Analog Input Voltage Range . . . 0 V to VDD• TTL Digital I/O Level• Low Power Consumption . ....

product image

TLC5502-5M Picture
See larger image
SeekIC No. : 004520661 Detail

TLC5502-5M: Features: • LinEPICE 1-mm CMOS Process• 8-Bit Resolution• Differential Linearity Error . . . ±0.2% Max• Maximum Conversion Rate . . . 20 MHz Typ . . . 10 MHz Min• Analo...

TLC5502-5M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLC5502-5M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• LinEPICE 1-mm CMOS Process
• 8-Bit Resolution
• Differential Linearity Error . . . ±0.2% Max
• Maximum Conversion Rate . . . 20 MHz Typ
  . . . 10 MHz Min
• Analog Input Voltage Range . . . 0 V to VDD
• TTL Digital I/O Level
• Low Power Consumption . . . 150 mW Typ
• 5-V Single-Supply Operation


Pinout

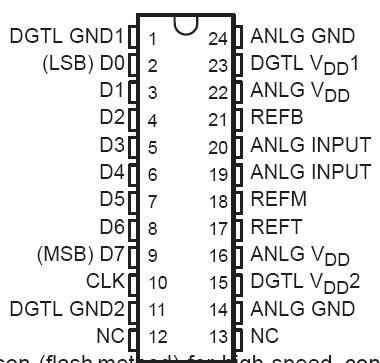

Connection Diagram


Specifications

Supply voltage range, ANLG VDD (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Supply voltage range, DGTL VDD (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Input voltage range at CLK, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to DGTL VDD + 0.3 V
Input voltage range at analog input, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to ANLG VDD + 0.5 V
Analog reference voltage range, Vref . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to ANLG VDD + 0.5 V
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55°C to 125°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  260°C
NOTE 1: Voltages at analog inputs and ANLG VDD are with respect to the ANLG GND terminals. Voltages at the digital outputs and DGTL VDD
are with respect to the DGTL GND terminals.


Description

The TLC5502-5M is a low-power ultra-high-speed 8-bit analog-to-digital converter that uses the LinEPICE CMOS process. It utilizes the full parallel comparison (flash method) for high-speed conversion. Because of such high-speed capability, the TLC5502-5M is suitable for motor control, high-speed signal processing, and video or radar signal processing.

Separate analog and digital supply pins of TLC5502-5M are provided to reduce coupling between the high-speed digital switching sections and the lower-frequency analog signal comparators. This pin partitioning minimizes crosstalk and unwanted spurious signals.

The TLC5502-5M is characterized for operation from 55°C to 125°C.
