TLC0834ID

Maximum Power Dissipation :
Architecture : SAR
Interface Type : Serial
Supply Voltage - Max : 5.5 V
Mounting Style : SMD/SMT
Packaging : Tube
Input Type : Voltage
SNR : Yes
Maximum Operating Temperature : + 85 C
Number of Converters : 1
Voltage Reference : External
Resolution : 8 bit
Supply Voltage - Min : 4.5 V
Conversion Rate : 20 KSPs
Number of ADC Inputs : 4, 2
Package / Case : SOIC-14


Features:

· 8-Bit Resolution
· Easy Microprocessor Interface or
  Stand-Alone Operation
· Operates Ratiometrically or With 5-V Reference
· 4- or 8-Channel Multiplexer Options With
  Address Logic
· Input Range 0 to 5 V With Single 5-V Supply
· Remote Operation With Serial Data Link
· Inputs and Outputs Are Compatible With
  TTL and MOS
· Conversion Time of 32 ms at
  fclock = 250 kHz
· Functionally Equivalent to the ADC0834
  and ADC0838 Without the Internal Zener
  Regulator Network
· Total Unadjusted Error . . . ±1 LSB

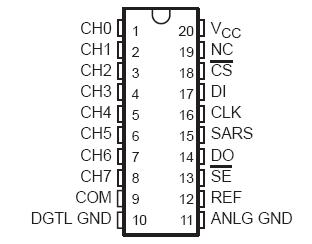

Pinout




Specifications

Supply voltage, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6.5 V
Input voltage range: Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.3 V to VCC + 0.3 V
Analog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to VCC+ 0.3 V
Input current, II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±5 mA
Total input current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±20 mA
Operating free-air temperature range, TA: C suffix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0°C to 70°C
I suffix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to 85°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: N package . . . . . . . . . . . . . . . . . . . . . 260°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: All voltage values, except differential voltages, are with respect to the network ground terminal.


Description

These devices are 8-bit successiveapproximation analog-to-digital converters, each with an input-configurable multichannel multiplexer and serial input/output. The serial input/output is configured to interface with standard shift registers or microprocessors. Detailed information on interfacing with most popular microprocessors is readily available from the factory.

The TLC0834 (4-channel) and TLC0838 (8-channel) multiplexer is software configured for single-ended or differential inputs as well as pseudo-differential input assignments. The differential analog voltage input allows for common-mode rejection or offset of the analog zero input voltage value. In addition, the voltage reference input can be adjusted to allow encoding of any smaller analog voltage span to the full 8 bits of resolution. The TLC0834C and TLC0838C are characterized for operation from 0°C to 70°C. The TLC0834I and TLC0838I are characterized for operation from 40°C to 85°C. The TLC0834Q is characterized for operation from 40°C to 125°C.

Parameters:

Technical/Catalog Information	TLC0834ID
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Number of Bits	8
Package / Case	14-SOIC (3.9mm Width), 14-SOL
Data Interface	Serial
Packaging	Tube
Sampling Rate (Per Second)	20k
Operating Temperature	-40°C ~ 85°C
Voltage Supply Source	Single
Number of Inputs and Type	8 Single-Ended, Unipolar; 4 Differential, Unipolar
Number of Converters	1
Power Dissipation (Max)	3mW
Drawing Number	296; 4040047-3; D; 14
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TLC0834ID TLC0834ID 296 2863 5 ND 29628635ND 296-2863-5
