Product Details

Description



Pinout

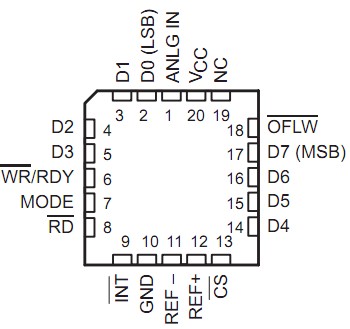

Connection Diagram




Specifications

Supply voltage, VCC  (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  10 V
Input voltage range, all inputs (see Note 1) . . . . . . . . . . . . . . . . . . .  . . .. . .  0.2 V to VCC+0.2 V
Output voltage range, all outputs (see Note 1)  . . . . . . . . . . . . . . . . . . .  . . . 0.2 V to VCC+0.2 V
Operating free-air temperature range: TLC0820AC  . . . .  . . . . . . . . . . . . . . . . .  . . . . 0°C to 70°C
TLC0820AI  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . .40°C to 85°C
Storage temperature range  . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . 65°C to 150°C
Case temperature for 10 seconds: FN package . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . .  260°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: DB, DW or N package. . . . 260°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: All voltages are with respect to network GND.


Description

The TLC0820AC and the TLC0820AI are Advanced LinCMOS 8-bit analog-to-digital converters each consisting of two 4-bit flash converters, a 4-bit digital-to-analog converter, a summing (error) amplifier, control logic, and a result latch circuit. The modified flash technique allows low-power integrated circuitry to complete an 8-bit conversion in 1.18 µs over temperature. The on-chip track-and-hold circuit has a 100-ns sample window and allows these devices to convert continuous analog signals having slew rates of up to 100 mV/µs without external sampling components. TTL-compatible 3-state output drivers and two modes of operation allow interfacing to a variety of microprocessors. Detailed information on interfacing to most popular microprocessors is readily available from the factory.
