Product Details

Description



Pinout

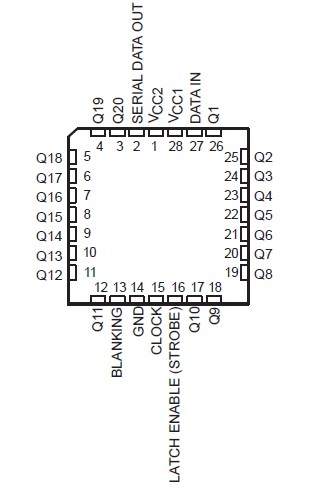

Connection Diagram




Specifications

Supply voltage, VCC1 (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . 15 V
Supply voltage, VCC2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 V
Output voltage, VO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . 70 V
Input voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to VCC1 +0.3 V
Output current, IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . 40 mA
Continuous total power dissipation . . . . . . . . . . . . . . .  . See Dissipation Rating Table
Operating free-air temperature range: TL5812 . . . . . . . . . . . . . . . . . . . . . 0  to 70
                                                            TL5812I . . . . . . . . . . . . . . . . . .. 40  to 85
Storage temperature range, . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65  to 150
Case temperature for 10 seconds: FN package . . . . . . . . . . . . . . . . .. . . . . . . . . 260
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: N package  .  . 260

1: All voltage values are with respect to GND.


Description

The TL5812 and TL5812I are monolithic BIDFET† integrated circuits designed to drive a dot matrix or segmented vacuum fluorescent display (VFD). Each device features a serial data output to cascade additional devices for large display arrays.

A 20-bit data word is serially loaded into the shift register on the low-to-high transition of CLOCK.Parallel data is transferred to the output buffers through a 20-bit D-type latch while LATCH ENABLE is high and is latched when LATCH ENABLE is low. When BLANKING is high, all outputs are low.

The TL5812 and TL5812I outputs are totem-pole structures formed by npn emitter-follower and double-diffused MOS (DMOS) transistors with output voltage ratings of 70 V and a source-current capability of 40 mA. All inputs are CMOS compatible.

The TL5812 is characterized for operation from 0  to 70 . The TL5812I is characterized for operation from 40 to 85 .
