TL5632C

PinoutSpecificationsPower supply voltage range, AVCC, DVCC (see Note 2). . . . . . . . . . . . . . . .. . . . . . . . . . . . . 0.3 V to 7 V Digital input voltage range,VI. . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . .. . . . . . . . . . . . . .. . 0.3 V to DVCC Analog output voltag...

product image

TL5632C Picture
See larger image
SeekIC No. : 004520223 Detail

TL5632C: PinoutSpecificationsPower supply voltage range, AVCC, DVCC (see Note 2). . . . . . . . . . . . . . . .. . . . . . . . . . . . . 0.3 V to 7 V Digital input voltage range,VI. . . . . . . . . . . . . ....

TL5632C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TL5632C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

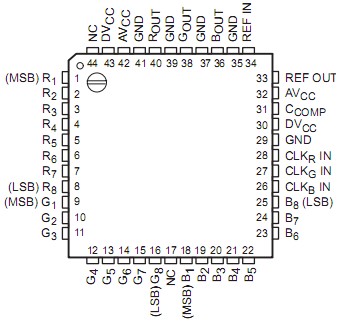

Connection Diagram


Specifications

Power supply voltage range, AVCC, DVCC (see Note 2) . . . . . . . . . . . . . . . .. . . . . . . . . . . . . 0.3 V to 7 V
Digital input voltage range,VI . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . .. . . . . . . . . . . . . .. .  0.3 V to DVCC
Analog output voltage range, ROUT, GOUT, BOUT, CCOMP (externally applied) . . . 0.3 V to AVCC + 0.3 V
Reference input range, REF IN . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . .. . . . . . . .  . 0.3 V to AVCC + 0.3 V
Reference output range, REF OUT . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . .. . . .  . . 0.3 V to AVCC + 0.3 V
Operating free-air temperature range, TA . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . .. . . .. . . . . .0°C to 70°C
Storage temperature range. . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . .  65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . .. . . . . . . . . . . . . . 260°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 2: All voltage values are with respect to GND.


Description

The TL5632C is a low-power ultra-high-speed video digital-to-analog converter that uses the Advanced Low-Power Schottky (ALS) process. The device has a three channel I/O; the red, the blue, and the green channel. The red, blue, and green signals are referred to collectively as the RGB signal. An internally generated reference is also provided for the standard video output voltage range. Conversion of digital signals to analog signals can be at a sampling rate of dc to 60 MHz. The high conversion rate makes the TL5632C suitable for digital television, computer digital video processing, and high-speed data conversion.

The TL5632C is characterized for operation from 0°C to 70°C.
