TL5501

PinoutSpecificationsSupply voltage range, ANLG VCC (see Note 1). . . . . . . . . . 0.5 V to 7 V Supply voltage range, DGTL VCC. . . . . . . . . . . . . . . .. . . . . 0.5 V to 7 V Input voltage range at digital input, VI. . . . . . . . . . .. . . . . 0.5 V to 7 V Input voltage range at analog i...

product image

TL5501 Picture
See larger image
SeekIC No. : 004520219 Detail

TL5501: PinoutSpecificationsSupply voltage range, ANLG VCC (see Note 1). . . . . . . . . . 0.5 V to 7 V Supply voltage range, DGTL VCC. . . . . . . . . . . . . . . .. . . . . 0.5 V to 7 V Input voltage ra...

TL5501 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TL5501
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/3

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

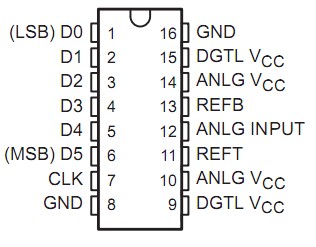

Connection Diagram


Specifications

Supply voltage range, ANLG VCC (see Note 1) . . . . . . . . . . 0.5 V to 7 V
Supply voltage range, DGTL VCC . . . . . . . . . . . . . . . .. . . . . 0.5 V to 7 V
Input voltage range at digital input, VI . . . . . . . . . . .. . . . . 0.5 V to 7 V
Input voltage range at analog input, VI  . . . . 0.5 V to ANLG VCC +0.5 V
Analog reference voltage range, Vref . . . . . . 0.5 V to ANLG VCC +0.5 V
Storage temperature range . . . . . . . . . . . . . . .. . . . .  . . 55°C to 150°C
Operating free-air temperature range . . . . . . . . . . . . . . . . . 0°C to 70°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . .260°C
NOTE 1: All voltage values are with respect to the network ground terminal.


Description

The TL5501 is a low-power ultra-high-speed video-band analog-to-digital converter that uses the Advanced Low-Power Schottky (ALS) process. It utilizes the full-parallel comparison (flash method) for high-speed conversion. It converts wide-band analog signals (such as a video signal) to a digital signal at a sampling rate of dc to 30 MHz. Because of this high-speed capability, the TL5501 is suitable for digital video applications such as digital TV, video processing with a computer, or radar signal processing.

The TL5501 is characterized for operation from 0°C to 70°C.
