Product Details

Description



Pinout

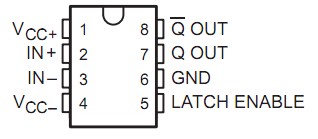

Connection Diagram


Specifications

Supply voltage, VDD (see Note 1) . . . . . . . . . . . . . . .. . . . . . . .  7 V to 7 V
Differential input voltage, VID (see Note 2) . . . . . . . . . . . .. . . . .  . . . . .  7 V
Input voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  7 V
Input voltage, VI (LATCH ENABLE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  7 V
Output current, IO . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . .  . . .  ± 20 mA
Continuous total power dissipation . . . . . . . .  See Dissipation Rating Table
Operating free-air temperature range, TA . . . . . . . . . . . . . . 40°C to 85°C
Storage temperature range, Tstg . . . . . . . . . . . . . .. .  . . . 65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds  . . . 260°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. All voltage values, except differential voltages, are with respect to network ground.
             2. Differential voltages are at IN+ with respect to IN.


Description

The TL3016 is an ultrafast comparator designed to interface directly to TTL logic while operating from either a single 5-V power supply or dual  ±5-V supplies. It features extremely tight offset voltage and high gain for precision applications. It has complementary outputs that can be latched using the LATCH ENABLE terminal. Figure 1 shows the positive supply current of this comparator. The TL3016 only requires 10.6 mA (typical) to achieve a propagation delay of 7.6 ns.

The TL3016 is a pin-for-pin functional replacement for the LT1016 comparator, offering higher speed operation but consuming half the power.
