Features:

Complete PWM Power control Circuitry
Completely Synchronized Operation
Internal Undervoltage Lockout Protection
Wide Supply Voltage Range
Internal Short-Circuit Protection
Oscillator Frequency . 500kHz Max
Variable Dead Time Provides Control Over Total Range
Internal Regulator Provides a Stable 2.5V Reference Supply


Pinout

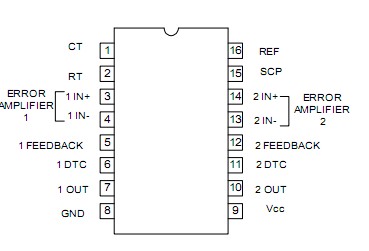

Connection Diagram


Specifications

PARAMETER SYMBOL VALUE UNIT
Supply Voltage VCC 51 V
Amplifier Input Voltage VI 20 V
Collector Output Voltage VO 51 V
Collector Output Current IO 21 mA
Power Dissipation : TA25°C
           DIP
           SOP		   1000
500		 mW
Operating free-air Temperature Range TA -20 TO 85 °C
Storage Temperature Range Tstg -65 TO 150 °C
Lead Temperature 1.6mm from Case for 10 Sec. Tcase 260 °C



Description

The UTC TL1451 incorporates on a single monolithic chip all the functions required in the construction of two pulse-width-modulation (PWM) control circuits. Designed primarily for power supply control, the TL1451 contains an on-chip 2.5V regulator, two error amplifiers, an adjustable oscillator, two dead-time comparators, undervoltage lockout circuitry, and dual common emitter output transistor circuits.
