TL087

Features: Low Input Offset Voltage . . . 0.5 mV MaxLow Power ConsumptionWide Common-Mode and DifferentialVoltage RangesLow Input Bias and Offset CurrentsHigh Input Impedance . . . JFET-Input StageInternal Frequency CompensationLatch-Up-Free OperationHigh Slew Rate . . . 18 V/m s TypLow Total Harmo...

product image

TL087 Picture
See larger image
SeekIC No. : 004520021 Detail

TL087: Features: Low Input Offset Voltage . . . 0.5 mV MaxLow Power ConsumptionWide Common-Mode and DifferentialVoltage RangesLow Input Bias and Offset CurrentsHigh Input Impedance . . . JFET-Input StageIn...

TL087 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TL087
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Low Input Offset Voltage . . . 0.5 mV Max
Low Power Consumption
Wide Common-Mode and DifferentialVoltage Ranges
Low Input Bias and Offset Currents
High Input Impedance . . . JFET-Input Stage
Internal Frequency Compensation
Latch-Up-Free Operation
High Slew Rate . . . 18 V/m s Typ
Low Total Harmonic Distortion0.003% Typ

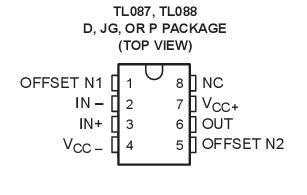

Pinout

Connection Diagram


Specifications


TL088M
TL288M
TL087I
TL088I
TL287I
TL288I
TL087C
TL088C
TL287C
TL288C


UNIT
Supply voltage, VCC+ (see Note 1)
18
18
18
V
Supply voltage, VCC (see Note 1)
18
18
18
V
Differential input voltage (see Note 2)
±30
±30
±30
V
Input voltage (see Notes 1 and 3)
±15
±15
±15
V
Input current, II(each InputI )
±1
±1
±1
mA
Output current, IO (each output)
±80
±80
±80
mA
Total VCC + terminal current
160
160
160
mA
Total VCC terminal current
160
160
160
mA
Duration of output short circuit (see Note 4)
unlimited
unlimited
unlimited

Continuous total dissipation
See Dissipation Rating Table
Operating free-air temperature range
-55to125
-25to 85
0 to 70
Storage temperature range
-65to150
-65to150
-65to150
Lead temperature 1,6 mm (1/16 inch) from
case for 60 seconds
JGorUpackage
300
300
300
Leadtemperature1,6mm(1/16 inch)from
case for 10 seconds
Dor P package

260
260



Description

These JFET-input operational amplifiers incorporate well-matched high-voltage JFET and bipolar transistorsin a monolithic integrated circuit. They feature low input offset voltage, high slew rate, low input bias and offsetcurrents, and low temperature coefficient of input offset voltage. Offset-voltage adjustment is provided for theTL087 and TL088.

The C-suffix devices are characterized for operation from 0 to 70, and the I-suffix devices are characterizedfor operation from 40 to 85. The M-suffix devices are characterized for operation over the full militarytemperature range of 55 to 125.
