TL084x2

ApplicationSpecificationsSupply voltage, VCC+ (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 VSupply voltage, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 V Differential input voltage, VID (see Note 2) . . . . . . . . . . . . . . . ...

product image

TL084x2 Picture
See larger image
SeekIC No. : 004520019 Detail

TL084x2: ApplicationSpecificationsSupply voltage, VCC+ (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 VSupply voltage, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . ....

TL084x2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TL084x2
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Application

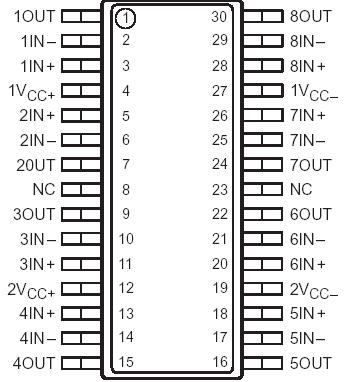

Connection Diagram


Specifications

Supply voltage, VCC+ (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 V
Supply voltage, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . .18 V
Differential input voltage, VID (see Note 2)  . . . . . . . . . . . . . . . . . . . . . . . .±30 V
Input voltage, VI (any input) (see Notes 1 and 3)  . . . . . . . . . .   . . . . . . . .±15 V
Duration of output short circuit to ground (see Note 4)  . . .  . . . . . . . . .unlimited
Continuous total dissipation  . . . . . . . . . . . . . . . . . .See Dissipation Rating Table
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature range  . . . . . . . . . . . . . . . . . . . . .  . . . . .65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . 260°C
NOTES: 1. All voltage values, except differential voltages and VCC specified for the measurement of IOS, are with respect to the midpoint
between VCC+ and VCC.
2. Differential voltages are at IN + with respect to IN .
3. The magnitude of the input voltage must never exceed the magnitude of the supply voltage or 15 V, whichever is less.
4. The output can be shorted to ground or to either supply. Temperature and/or supply voltages must be limited to ensure that the
dissipation rating is not exceeded.


Description

The TL084x2 JFET-input operational amplifier incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The device features high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient.

The TL084x2 is characterized for operation from 0°C to 70°C.
