TL074x2

PinoutSpecificationsSupply voltage, VCC+ (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 VSupply voltage, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 V Differential input voltage, VID (see Note 2) . . . . . . . . . . . . . . . . . ....

product image

TL074x2 Picture
See larger image
SeekIC No. : 004520001 Detail

TL074x2: PinoutSpecificationsSupply voltage, VCC+ (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 VSupply voltage, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . ...

TL074x2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TL074x2
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

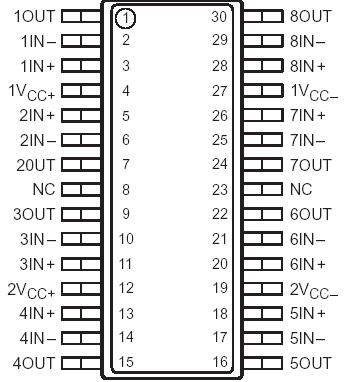

Connection Diagram


Specifications

Supply voltage, VCC+ (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 V
Supply voltage, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 V
Differential input voltage, VID (see Note 2) . . . . . . . . . . . . . . . . . . . . . . . .±30 V
Input voltage, VI (any input) (see Notes 1 and 3) . . . . . . . . . . . . . . . . . .±15 V
Duration of output short circuit to ground (see Note 4) . . . . . . . . . . . .unlimited
Continuous total dissipation . . . . . . . . . . . . . . . . . .See Dissipation Rating Table
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . 260°C
NOTES: 1. All voltage values, except differential voltages and VCC specified for the measurement of IOS, are with respect to the midpoint
between VCC+ and VCC.
2. Differential voltages are at IN + with respect to IN .
3. The magnitude of the input voltage must never exceed the magnitude of the supply voltage or 15 V, whichever is less.
4. The output can be shorted to ground or to either supply. Temperature and/or supply voltages must be limited to ensure that the
dissipation rating is not exceeded.


Description

The TL074x2 JFET-input operational amplifier is designed as a lower-noise version of the TL084x2 amplifier with low input bias and offset currents and fast slew rate. The low harmonic distortion and low noise make the TL074x2 ideally suited for high-fidelity and audio-preamplifier applications. Each amplifier features JFET inputs (for high input impedance) coupled with bipolar output stages integrated on a single monolithic chip.

The TL074x2 is characterized for operation from 0°C to 70°C.
