TL061A

Features: Very Low Power ConsumptionTypical Supply Current... 200 A(Per Amplifier)Wide Common-Mode and Differential Voltage RangesLow Input Bias and Offset CurrentsCommon-Mode Input Voltage RangeIncludes VCC+Output Short-Circuit ProtectionHigh Input Impedance... JFET-Input StageInternal Frequency ...

product image

TL061A Picture
See larger image
SeekIC No. : 004519970 Detail

TL061A: Features: Very Low Power ConsumptionTypical Supply Current... 200 A(Per Amplifier)Wide Common-Mode and Differential Voltage RangesLow Input Bias and Offset CurrentsCommon-Mode Input Voltage RangeInc...

TL061A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TL061A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Very Low Power Consumption
Typical Supply Current... 200 A(Per Amplifier)
Wide Common-Mode and Differential Voltage Ranges
Low Input Bias and Offset Currents
Common-Mode Input Voltage Range
Includes VCC+
Output Short-Circuit Protection
High Input Impedance... JFET-Input Stage
Internal Frequency Compensation
Latch-Up-Free Operation
High Slew Rate... 3.5 V/s Typ


Pinout

Connection Diagram

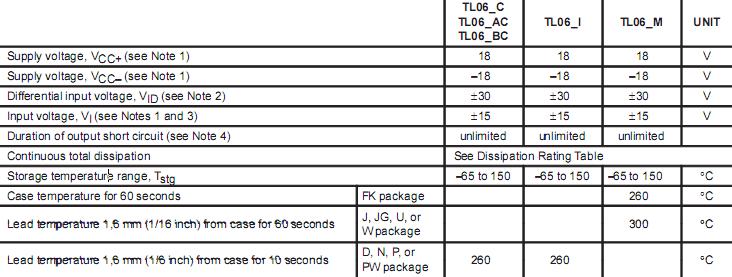

Specifications

Connection Diagram


Description

      The JFET-input operational amplifiers of the TL06_ series are designed as low-power versions of the TL08_ series amplifiers. They feature high input impedance, wide bandwidth, high slew rate, and low input offset and input bias currents. The TL06_ series feature the same terminal assignments as the TL07_ and TL08_ series. Each of these JFET-input operational amplifiers incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit.


      The C-suffix devices are characterized for operation from 0 to 70. The I-suffix devices are characterized for operation from -40 to 85, and the M-suffix devices are characterized for operation over the full military temperature range of -50 to 125.
