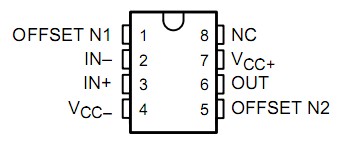

TL051

Supply voltage, V_CC+ (see Note 1). . . . . . . . . . .. . . . . . . . . . . . . .. . . . . . . .  . . .18 V
Supply voltage, V_CC (see Note 1). . . . . . . . . . . .. . . . . . . . . . . . . .. . . . . . . . . 18 V
Differential input voltage (see Note 2) . . . . . . . . . . . . . . . . . . . . . . . .. . . .. . . . ±30 V
Input voltage range, V_I (any input, see Notes 1 and 3) . . . . . . .. . . . . . . . . . . ±15 V
Input current, I_I (each input) . . . . . . . . . .. . . . . . . . . . . . . .. . . . . . . . . .  . . . . ±1 mA
Output current, I_O (each output) . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . ±80 mA
Total current into V_CC+ . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . .. . 160 mA
Total current out of V_CC . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . 160 mA
Duration of short-circuit current at (or below) 25°C. . . . . . . . . . . .. . . . . . . Unlimited
Package thermal impedance, _JA (see Notes 4 and 5): D package (8 pin) . . 97°C/W
                                                                                      D package (14 pin) . 86°C/W
                                                                                      DB package (14 pin).96°C/W
                                                                                      N package (14 pin) . 80°C/W
                                                                                      NS package (14 pin).76°C/W
                                                                                      P package (8 pin) . . 85°C/W
                                                                                      PS package (8 pin) . 95°C/W
Operating virtual junction temperature, T_J . . . . . . . . . . . . . . . . . . .. . . . . . . . .150°C
Lead temperature 1,6 mm (1/16inch) from case for 10 seconds . . . . . . . . . . . 260°C
Storage temperature range . . . . . . . . . .. . . . . . . . . .. . . . . . . . . ..  . 65°C to 150°C
† Stresses beyond those listed under  "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. All voltage values, except differential voltages, are with respect to the midpoint between V_CC+ and V_CC.
             2. Differential voltages are at IN+ with respect to IN.
             3. The magnitude of the input voltage must never exceed the magnitude of the supply voltage or 15 V, whichever is less.
             4. Maximum power dissipation is a function of T_J(max), _JA, and T_A. The maximum allowable power dissipation at any allowable ambient temperature is P_D = (T_J(max) T_A)/_JA. Operating at the absolute maximum T_J of 150°C can impact reliability.
             5. The package thermal impedance is calculated in accordance with JESD 51-7.

The TL05x series of JFET-input operational amplifiers offers improved dc and ac characteristics over the TL07x and TL08x families of BiFET operational amplifiers. On-chip Zener trimming of offset voltage yields precision grades as low as 1.5 mV (TL051A) for greater accuracy in dc-coupled applications. Texas Instruments improved BiFET process and optimized designs also yield improved bandwidth and slew rate without increased power consumption. The TL05x devices are pin-compatible with the TL07x and TL08x and can be used to upgrade existing circuits or for optimal performance in new designs.

BiFET operational amplifiers offer the inherently higher input impedance of the JFET-input transistors, without sacrificing the output drive associated with bipolar amplifiers. This makes them better suited for interfacing with high-impedance sensors or very low-level ac signals. They also feature inherently better ac response than bipolar or CMOS devices having comparable power consumption.

The TL05x family was designed to offer higher precision and better ac response than the TL08x, with the low noise floor of the TL07x. Designers requiring significantly faster ac response or ensured lower noise should consider the Excalibur TLE208x and TLE207x families of BiFET operational amplifiers.

Because BiFET operational amplifiers are designed for use with dual power supplies, care must be taken to observe common-mode input voltage limits and output swing when operating from a single supply. DC biasing of the input signal is required, and loads should be terminated to a virtual-ground node at mid-supply. Texas Instruments TLE2426 integrated virtual ground generator is useful when operating BiFET amplifiers from single supplies.

The TL05x are fully specified at ±15 V and ±5 V. For operation in low-voltage and/or single-supply systems, Texas Instruments LinCMOS families of operational amplifiers (TLC-prefix) are recommended. When moving from BiFET to CMOS amplifiers, particular attention should be paid to the slew rate and bandwidth requirements, and also the output loading.
