TK75018

Features: 35 mA (typ.) Output CurrentOperating Range 3.5 to 7 VReference and Error Amplifier for RegulationExternal ShutdownExternal Oscillator SynchApplicationVoltage InverterNegative Voltage DoublerVoltage RegulatorPositive Voltage DoublerPinoutSpecificationsSupply Voltage VINFor Doubler Conf. ....

product image

TK75018 Picture
See larger image
SeekIC No. : 004519921 Detail

TK75018: Features: 35 mA (typ.) Output CurrentOperating Range 3.5 to 7 VReference and Error Amplifier for RegulationExternal ShutdownExternal Oscillator SynchApplicationVoltage InverterNegative Voltage Doubl...

TK75018 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TK75018
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

35 mA (typ.) Output Current
Operating Range 3.5 to 7 V
Reference and Error Amplifier for Regulation
External Shutdown
External Oscillator Synch


Application

Voltage Inverter
Negative Voltage Doubler
Voltage Regulator
Positive Voltage Doubler

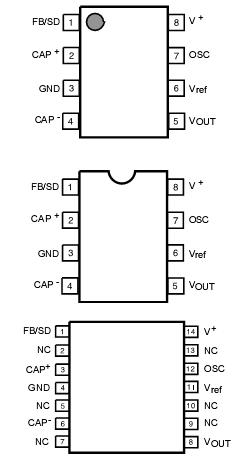

Pinout

Connection Diagram


Specifications

Supply Voltage VINFor Doubler Conf. .............................................................. 7 V
Supply Voltage VIN For Regulating Conf.......................................................... 8 V
Power Dissipation TK75018M (Note 1)..................................................... 600 mW
Power Dissipation TK75018D (Note 2) .................................................. 1000 mW
Power Dissipation TK75018V (Note 3) ..................................................... 950 mW
Storage Temperature Range ....................................................... -55 to +150 °C
Operating Temperature Range .........................................................-20 to 80 °C
Junction Temperature ...............................................................................150 °C
Lead Soldering Temperature (10 s) ......................................................... 235 °C


Description

The TK75018 is a monolithic switched capacitor converter with feedback control. With just two capacitors, the TK75018 can create a negative voltage supply which tracks a positive supply. As an alternative, the feedback pin can be used to establish regulation at a desired voltage, and it can also be used as a shutdown signal input. A single TK75018 can also be configured as a non-inverting step-up converter or dual output voltage doubler.

With no external timing elements, the converter will self-oscillate at 25 kHz, nominal. This frequency can also be user adjusted with a small capacitor or synchronized to another oscillator.

Quiescent current is typically 2.5 mA. Standby current is guaranteed less than 200  A over the full operating
temperature and input voltage ranges.
