TK68HC24P

Features: ` Exact replacement for the Motorola MC68HC24 PRU` Utilizes the Tekmos 6824 Core` Replaces ports B and C of 6811 type microprocessors.` The chip-select function allows multiple TK68HC24s to be used in systems requiring multiple parallel ports.` 3 5.5 Volt Operation.` 0 5 MHz Operation....

product image

TK68HC24P Picture
See larger image
SeekIC No. : 004519859 Detail

TK68HC24P: Features: ` Exact replacement for the Motorola MC68HC24 PRU` Utilizes the Tekmos 6824 Core` Replaces ports B and C of 6811 type microprocessors.` The chip-select function allows multiple TK68HC24s t...

TK68HC24P Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TK68HC24P
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Exact replacement for the Motorola MC68HC24 PRU
` Utilizes the Tekmos 6824 Core
` Replaces ports B and C of 6811 type microprocessors.
` The chip-select function allows multiple TK68HC24s to be used in systems requiring multiple parallel ports.
` 3 5.5 Volt Operation.
` 0 5 MHz Operation.
` Supports all handshake and I/O modes.
` Available in 40 PDIP (P) and 44 PLCC (FN) versions.




Pinout

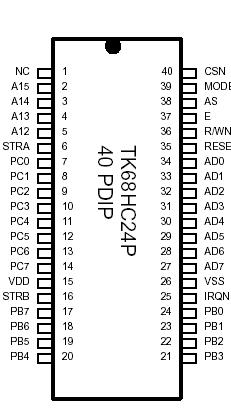

Connection Diagram




Specifications

Characteristics Symbol Min Max Unit
Supply Voltage Vdd -0.5 7.0 V
Input Voltage Vin Vss 0.5 Vdd + 0.5 V
Current Drain per Pin Imax   25 mA
Operating Temperature Range Ta -40 85 oC
Storage Temperature range Tstg -55 +150 oC



Description

The TK68HC24 is an exact replacement of the Motorola 68HC24.

The TK68HC24 is designed to replace the Port B and Port C functions of 6811 type microprocessors. These functions are lost when the 6811 type microprocessors are operated in the expanded mode. The TK68HC24 has an address re-mapping feature that allows multiple TK68HC24s to be used within a single system.
