Product Details

Description

Features:

Class-T architecture
Pin compatible with Tripath TK2150
Proprietary Digital Power Processing technology
"Audiophile" Sound Quality
      0.02% THD+N @ 50W, 8Ω
      0.03% IHF-IM @ 30W, 8Ω
High Efficiency
      95% @ 150W @ 8Ω
      90% @ 275W @ 4Ω
Supports wide range of output power levels
      Up to 300W/channel (4Ω), single-endedoutputs
      Up to 1000W (4Ω), bridged outputs
Output over-current protection
Over- and under-voltage protection
Over-temperature protection

Application

Audio/Video Amplifiers & Receivers
Pro-audio Amplifiers
Automobile Power Amplifiers
Subwoofer Amplifiers

Pinout

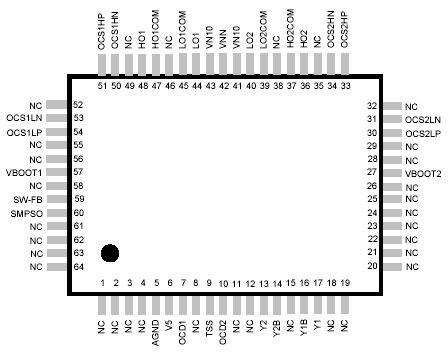

Connection Diagram

Specifications

SYMBOL	PARAMETER	Value	UNITS
V₅	5V Power Supply	6	V
V_logic	Input Logic Level	V5+0.3V	V
T_A	Operating Free-air Temperature Range	-40° to +85°	°C
T_STORE	Storage Temperature Range	-55° to 150°	°C
T_JMAX	Maximum Junction Temperature	150°	°C
ESD_HB	ESD Susceptibility Human Body Model (Note 2) All pins	2000	V

Description

The TK2350 (TC2001/TP2350B chipset) is a two-channel, 300W (4Ω) per channel Amplifier Driver that uses Tripath's proprietary Digital Power Processing (DPP^TM) technology. Class-T amplifiers offer both the audio fidelity of Class-AB and the power efficiency of Class-D amplifiers.
