TK2150

Product :
Type : Crimp Tools
Description/Function : Kit


Features:

`Class-T architecture
` Pin compatible with Tripath TK2350 Chipset
` Proprietary Digital Power Processing technology
`"Audiophile" Sound Quality
    0.012% THD+N @ 60W, 8Ω
    0.02% IHF-IM @ 30W, 8Ω
`High Efficiency
`93% @ 120W @ 8Ω
`91% @ 150W @ 6Ω
`Supports wide range of output power levels
   Up to 200W/channel (6Ω), single-ended outputs, @+/- 45V
   Up to 400W (8Ω), bridged outputs, @+/- 30V
`Output over-current protection
`Over- and under-voltage protection
` Over-temperature protection


Application

 · Powered DVD Players
 · Audio/Video Amplifiers & Receivers
 ·Automobile Power Amplifiers
 · Subwoofer Amplifiers
 ·Pro-audio Amplifiers

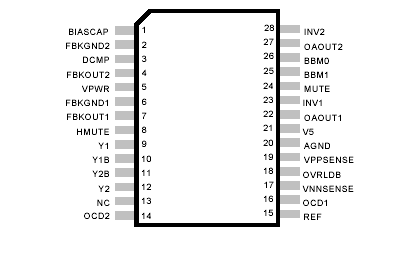

Pinout




Specifications

SYMBOL	PARAMETER	Value	UNITS
VPP, VNN	Supply Voltage	+/- 65	V
VN10	Voltage for FET drive	VNN+13	V
TSTORE	Storage Temperature Range	-55º to 150º
TA	Operating Free-air Temperature Range (Note 4)	-40º to 85º
TJ	Junction Temperature	150º
ESDHB	ESD Susceptibility Human Body Model (Note 5) All pins	2000	V
ESDMM	ESD Susceptibility Machine Model (Note 6) All pins	TBD	V

Note 3: Absolute Maximum Ratings indicate limits beyond which damage to the device may occur. See the
             table below for Operating Conditions.
Note 4: This is a target specification. Characterization is still needed to validate this temperature range.
Note 5: Human body model, 100pF discharged through a 1.5KΩ resistor.
Note 6: Machine model, 220pF 240pF discharged through all pins.


Description

The TK2150 (TC2001/TP2 1 5 0 c h i p s e t ) i s a t wo - c h a n n e l , 200W ( 6 Ω ) p e r c h a n n e l A m p l i f i e r
Driver that uses T r i p a t h ' s p r o p r i e t a r y Digital Power Processing (DPP^{T M} ) t e c h n o l o g y.
C l a s s - T a m p l i f i e r s o f f e r b o t h t h e a u d i o f i d e l i t y of Class-AB and the powe r e f f i c i e n c y o f
C l a s s - D a m p l i f i e r s .
