Product Details

Description

Features:

Class-T Architecture
High Output power
           20W @ 4Ω, 10% THD+N Single Ended
            11W @ 8Ω, 10% THD+N Single Ended
Audiophile Quality Sound
         0.03% THD+N @ 11W 4Ω Single Ended
         0.03% THD+N @ 6W 8Ω Single Ended
High Efficiency
        92% @ 20W 4Ω Single Ended
        93% @ 11W 8Ω Single Ended
Dynamic Range >100 dB

Application

5.1-Channel powered DVD player
Mini/Micro Component Systems
Home Theater
Stereo applications (4Ω / 8Ω)

Pinout

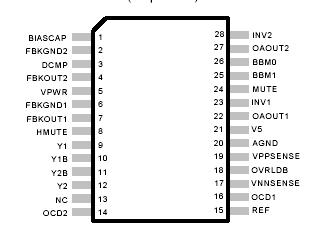

Connection Diagram

Specifications

SYMBOL	PARAMETER	Value	UNITS
V₅	5V Power Supply	6	V
V_logic	Input Logic Level	V5+0.3V	V
T_A	Operating Free-air Temperature Range	-40 to 85	°C
T_STORE	Storage Temperature Range	-55 to 150	°C
T_JMAX	Maximum Junction Temperature	150	°C
ESD_HB	ESD Susceptibility Human Body Model (Note 2), all pins	2000	V

Description

The TK2019 (TC2001/TPS1035 chipset) is a stereo single ended 20Wcontinuous average power per channel, Class-T Digital Audio PowerAmplifier using Tripath' s propriet ry Digital Power Processing^{T M} technology . The TK2019 chipset consists of 1 TC2001 and 2 TPS1035's to obtain a single ended stereo configuration . Class - Tamplifiers offer both the audio fidelity of Class - AB and the power efficiency of Class - Damplifiers .
