TK15420

Features: Fixed Gain (6 dB) Internal 75 Drivers Very Small Output Capacitor at SAG Function Pin Active High ON/OFF Control Very Low Standby Current (typ. ICCS 25 A) Internal Summing Circuit of Y/C Signal.Application Video Equipment Digital Cameras CCD Cameras TV Monitors Video Tape Recorders LC...

product image

TK15420 Picture
See larger image
SeekIC No. : 004519782 Detail

TK15420: Features: Fixed Gain (6 dB) Internal 75 Drivers Very Small Output Capacitor at SAG Function Pin Active High ON/OFF Control Very Low Standby Current (typ. ICCS 25 A) Internal Summing Circuit of Y/...

TK15420 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TK15420
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

  Fixed Gain (6 dB)
  Internal 75 Drivers
  Very Small Output Capacitor at SAG Function Pin
  Active High ON/OFF Control
  Very Low Standby Current (typ. ICCS 25 A)
  Internal Summing Circuit of Y/C Signal.


Application

  Video Equipment
  Digital Cameras
  CCD Cameras
  TV Monitors
  Video Tape Recorders
  LCD Televisions


Pinout

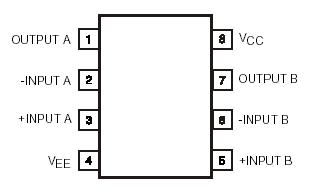

Connection Diagram


Specifications

Supply Voltage ......................................................... 14 V
Operating Voltage Range............................ 4.0 to 12.0 V
Power Dissipation (Note 1) ................................ 400 mW
Storage Temperature Range ................... -55 to +150 °C
Operating Temperature Range ...................-25 to +85 °C
Input Frequency .................................................. 20 MHz


Description

The TK15420M is a vidoe line driver IC which contains 2 channels. It is an operational amplifier type and the voltage gain is adjustable with an external resistor.

It is suitable for replacement of Motorola's video line driver IC MC14577CF.

The TK15420M is available in the SOP-8 surface mount package.
