Features:

Internal Y-C Summing Circuit
Internal Switch Circuit for Composite Signal or Y-C Signal
Voltage Gain is 6 dB Fixed
Internal 75 Ω Driver
Very Small Output Capacitor Using SAG Function Pin
Very Small Package (SOT23L-8)

Application

Video Equipment
Camcorder
CCD Cameras
DVD Player/RW
Video Board
Video Tape Recorders
LCD TV/Monitor

Pinout

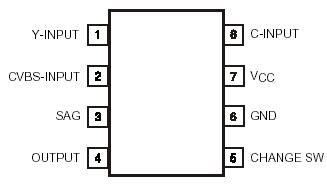

Connection Diagram

Specifications

Supply Voltage ........................................................... 6 V
Operating Voltage Range.............................. 4.5 to 5.5 V
Power Dissipation (Note 1) ................................ 200 mW
Input Frequency ............................................... 10.0 MHz
Storage Temperature Range ................... -55 to +150 °C
Operating Temperature Range ...................-25 to +85 °C

Description

Operating from a single +5 V supply, the TK15415M is a 75 Ω video line driver IC with an internal Y-C summing circuit. It has an internal switch circuit for the CVBS compostie signal and the Y-C signal. The internal 1.5 k SAG function resistor provides gain compensation for low frequency signals. (Voltage gain from the CVBS signal input terminal is 6 dB.)

The TK15415M is available in the very small SOT23L-8 surface mount package.
