TK15410

Operating from a single +5 V supply, the TK15410 is a single-channel video line driver IC that takes a standard video analog input and provides a buffered analog output for driving a 150 Ω load. The standard video input signal (1 V_P-P typical) is internally clamped to 1.25 V and amplified 6 dB to produce 2 V_P-P (typical) into a series 75 Ω resistor and 75 Ω cable load. The internal 1.5 k SAG function resistor provides gain compensation for low frequency signals. The built-in superimpose circuit provides the addition of character (140 IRE) and border (70 IRE) generation to the video signal. During standby (Pin 5 grounded), the TK15410 consumes only 125 µW of power. Nominal power dissipation (no input) is typically 73 mW.

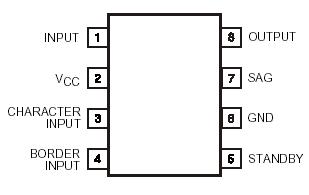

The TK15410M is available in the SOT23L-8 surface mount package.
