Features:

  Wide Operating Voltage Range (3 to 14 V)
  Low Distortion (typ. 0.003%)
  Wide Dynamic Range (typ. 6 VP-P)
  Low Output Impedance (typ. 20 )
  Low Switching Noise (typ. 3 mV)


Application

  Audio Systems
  Radio Cassettes


Pinout

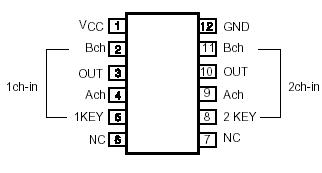

Connection Diagram


Specifications

Supply Voltage ......................................................... 15 V
Power Dissipation (Note 5) ................................ 350 mW
Storage Temperature Range ................... -55 to +150 °C
Operating Temperature Range ...................-20 to +75 °C
CONTROL SECTION
Input Voltage ..................................-0.3 V to VCC + 0.3 V
ANALOG SWITCH SECTION
Signal Input Voltage ........................-0.3 V to VCC + 0.3 V
Signal Output Current .............................................. 3 mA
Operating Voltage Range................................... 3 to 14 V
Maximum Input Frequency.................................... 100 kHz


Description

The TK15323M is an Analog Switch IC that was developed for audio frequency. Function is to select one output from two inputs in a device that includes two circuits, and the channel can be changed by low level. The TK15323M has a mono-power supply and the input bias is a supply type from outside. Because the distortion is very low, the TK15323M fits various signals switching. It is best suited for Hi-Fi devices. Operating voltage is wide, the circuit plan is simple. The TK15323M is available in a small plastic surface mount package (SSOP-12).
