Product Details

Description

Features:

Low Voltage Operation
Two Stage IF Limiter
Mixer
Adjustable Internal Regulator

Application

GPS Systems
Digital Communications

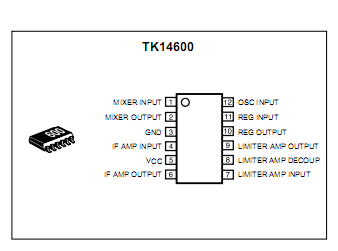

Pinout

Connection Diagram

Specifications

Maximum Supply Voltage ..........................................6 V
Operating Voltage Range.............................2.3 to 5.5 V
Junction Temperature ........................................150 °C
Power Dissipation (Note 1) ...............................250 mW
Lead Soldering Temp. (10 sec.) ....................... 235 °C
Storage Temperature Range ................-55 to +150 °C
Operating Temperature Range ...............-30 to +80 °C

Description

The TK14600 is a low operating voltage FM IF systemdesigned for use in GPS receivers and other digital com-
munications systems. This IC contains a high gain 2-stageIF limiter with an internal voltage regulator.

The TK14600 is available in the SSOP-12 (MFP-12)surface mount package.
