TISP4350MMAJ

Features:

- ITU-T Recommendation K.21
  10/700
  AC Induction and Contact
- FCC Part 68 (TIA/EIA-IS-968)
  Type A & B Surge
- UL 60950 and CSA 22.2 No.60950
  Clause 6. Power Cross
- Telcordia GR-1089-CORE
  2/10 and 10/1000
  AC Induction and Contact


Application

TISP4300MM for:
  POTS Solid-State Relay Modems
  Protection Voltage .............................................................. 300 V
TISP4350MM for:
  POTS Electro-mechanical Relay Modems
  FCC Type B Ringer Voltage ............................................... 275 V
TISP4360MM for:
  ADSL Modems
  ADSL + Type B Ringer Voltage .......................................... 290 V

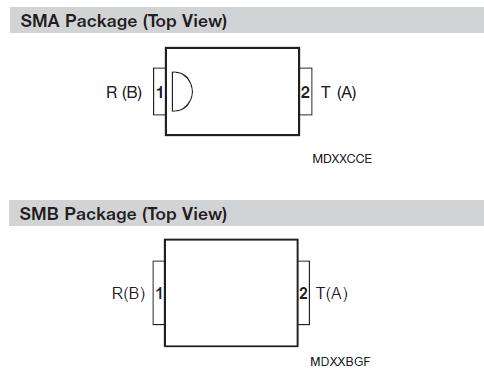

Pinout




Specifications

Rating	Symbol	Value	Unit
Repetitive peak off-state voltage, '4300                                                       '4350                                                       '4360	VDRM	±230 ±275 ±290	V
Non-repetitive peak on-state pulse current (see Notes 2, 3 and 4)     2/10 s (GR-1089-CORE, 2/10 s voltage wave shape)     10/160 s (FCC Part 68 (TIA/EIA-IS-968), 10/160 s voltage wave shape)     5/320 s (FCC Part 68 (TIA/EIA-IS-968), 9/720 s voltage wave shape)     5/310 s (ITU-T K.44, 10/700 s voltage wave shape used in K.20/45/21)     10/560 s (FCC Part 68 (TIA/EIA-IS-968), 10/560 s voltage wave shape)     10/1000 s (GR-1089-CORE, 10/1000 s voltage wave shape)	ITSP	250 75 65 65 55 50	A
Non-repetitive peak on-state current (see Notes 2, 3 and 4) 20 ms (50 Hz) full sine wave 1 s (50 Hz) full sine wave 1000 s 50 Hz/60 Hz a.c.	ITSM	18 7 1.6	A
Junction temperature	TJ	-40 to +150	°C
Storage temperature range	Tstg	-65 to +150	°C

NOTES: 1. For voltage values at lower temperatures derate at 0.13 %/°C.
            2. Initially, the TISP43xxMM must be in thermal equilibrium with T_J = 25 °C.
            3. The surge may be repeated after the TISP43xxMM returns to its initial conditions.
           4. EIA/JESD51-2 environment and EIA/JESD51-3 PCB with standard footprint dimensions connected with 5 A rated printed wiring  track widths. Derate current values at -0.61 %/°C for ambient temperatures above 25 °C.


Description

These devices TISP4350MMAJ are designed to limit overvoltages on the telephone line. Overvoltages are normally caused by a.c. power system or lightning flash disturbances which are induced or conducted on to the telephone line. A single device TISP4350MMAJ provides 2-point protection and is typically used for the protection of 2-wire telecommunication equipment (e.g. between the Ring and Tip wires for telephones and modems). Combinations of devices can be used for multi-point protection (e.g. 3-point protection between Ring, Tip and Ground).
