TIL3011

Input-to-output peak voltage, 5 s maximum duration, 60 Hz (see Note 1)  . . . . . . . . . . . . . . . . . . . . .3.535 kV
Input diode reverse voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. . . . . .3 V
Input diode forward current, continuous  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .50 mA
Output repetitive peak off-state voltage  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .   . . . .250 V
Output on-state current, total rms value (50-60 Hz, full sine wave): T_A = 25° . . . . . . . . . . . . . . . ... . .100 mA
                                                                                                           T_A = 70° . . . . . . . . . . . . . . .  . . . .50 mA
Output driver nonrepetitive peak on-state current (t_w = 10 ms, duty cycle = 10%, see Figure 7) . . . .. . 1.2 A
Continuous power dissipation at (or below) 25°C free-air temperature:
        Infrared-emitting diode (see Note 2)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..  . .100 mW
        Phototriac (see Note 3)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . .. .300 mW
        Total device (see Note 4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .  . . .330 mW
Operating junction temperature range, T_J  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .40°C to 100°C
Storage temperature range, T_stg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  ..  .40°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds  . . . . . . . . . . . . . . . . . . . . . . . . . . . . .260°C

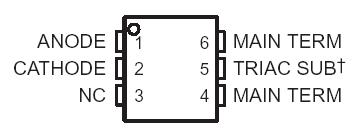

Each device TIL3011 consists of a gallium-arsenide infrared-emitting diode optically coupled to a silicon phototriac mounted on a 6-pin lead frame encapsulated within an electrically nonconductive plastic compound. The case withstands soldering temperature with no deformation. TIL3011 Device performance characteristics remain stable when operated in high-humidity conditions.
