Product Details

Description



Features:

 High Current Triacs
16 A RMS
Glass Passivated Wafer
400 V to 800 V Off-State Voltage
125 A Peak Current
Max IGT of 50 mA (Quadrants 1 - 3)

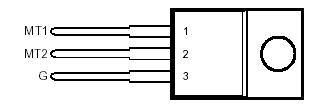

Pinout

Connection Diagram


Specifications

RATING SYMBOL VALUE UNIT
Repetitive peak off-state voltage (see Note 1) TIC246D
TIC246M
TIC246S
TIC246N		 VDRM 400
600
700
800		 V
Full-cycle RMS on-state current at (or below) 70°C case temperature (see Note 2) IT(RMS) 16 A
Peak on-state surge current full-sine-wave at (or below) 25°C case temperature (see Note 3) ITSM 125 A
Peak gate current IGM ±1 A
Operating case temperature range TC -40 to +110 °C
Storage temperature range Tstg -40 to +125 °C
Lead temperature 1.6 mm from case for 10 seconds TL 230 °C
