TIC126N

Features: 12 A Continuous On-State Current 100 A Surge-Current Glass Passivated Wafer 400 V to 800 V Off-State Voltage Max IGT of 20 mAPinoutSpecifications RATING SYMBOL VALUE UNIT Repetitive peak off-state voltage TIC126DTIC126MTIC126STIC126N VRRM 400600700800 V Repetitive peak ...

product image

TIC126N Picture
See larger image
SeekIC No. : 004519087 Detail

TIC126N: Features: 12 A Continuous On-State Current 100 A Surge-Current Glass Passivated Wafer 400 V to 800 V Off-State Voltage Max IGT of 20 mAPinoutSpecifications RATING SYMBOL VALUE UNIT Repeti...

TIC126N Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TIC126N
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 12 A Continuous On-State Current
100 A Surge-Current
Glass Passivated Wafer
400 V to 800 V Off-State Voltage
Max IGT of 20 mA




Pinout

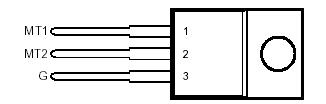

Connection Diagram


Specifications

RATING SYMBOL VALUE UNIT
Repetitive peak off-state voltage TIC126D
TIC126M
TIC126S
TIC126N		 VRRM 400
600
700
800		 V
Repetitive peak off-state voltage TIC126D
TIC126M
TIC126S
TIC126N		 VRRM 400
600
700
800		 V
Continuous on-state current at (or below) 70°C case temperature (see Note 1) IT(RMS) 12 A
Average on-state current (180° conduction angle) at (or below) 70°C case temperature (see Note 2) IT(AV) 7.5 A
Surge on-state current at (or below) 25°C case temperature (see Note 3) ITM 100 A
Peak positive gate current (pulse width £ 300 s) IGM 3 A
Peak gate power dissipation (pulse width £ 300 s) PGM 5 W
Average gate power dissipation (see Note 4) PG(AV) 1 W
Operating case temperature range TC -40 to +110 °C
Storage temperature range Tstg -40 to +125 °C
Lead temperature 1.6 mm from case for 10 seconds TL 230 °C
