TIB82S105BC

Features: • 50-MHz Clock Rate• Power-On Preset of All Flip-Flops• 6-Bit Internal State Register With 8-Bit Output Register• Power Dissipation . . . 600 mW Typical• Programmable Asynchronous Preset or Output Control• Functionally Equivalent to, but Faster Than 82...

product image

TIB82S105BC Picture
See larger image
SeekIC No. : 004518982 Detail

TIB82S105BC: Features: • 50-MHz Clock Rate• Power-On Preset of All Flip-Flops• 6-Bit Internal State Register With 8-Bit Output Register• Power Dissipation . . . 600 mW Typical• Prog...

TIB82S105BC Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TIB82S105BC
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 50-MHz Clock Rate
• Power-On Preset of All Flip-Flops
• 6-Bit Internal State Register With 8-Bit Output Register
• Power Dissipation . . . 600 mW Typical
• Programmable Asynchronous Preset or Output Control
• Functionally Equivalent to, but Faster Than 82S105A†

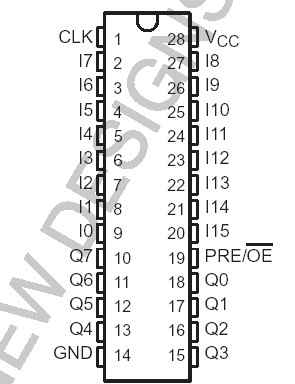

Pinout

Connection Diagram


Specifications

Supply voltage, VCC (see Note 4)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
Input voltage (see Note 4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 5.5 V
Voltage applied to disabled output (see Note 4)  . . . . . . . . . . . . . . . .. . . . . . . 5.5 V
Operating free-air temperature range  . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 75°C
Storage temperature range  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C


Description

The TIB82S105BC is a TTL field-programmable state machine of the Mealy type. This state machine (logic sequencer) contains 48 product terms (AND terms) and 14 pairs of sum terms (OR terms). The TIB82S105BC and sum terms are used to control the 6-bit internal state register and the 8-bit output register.

The outputs of the internal state register TIB82S105BC (P0P5) are fed back and combined with the 16 inputs (I0I15) to form the AND array. In addition a single sum term is complemented and fed back to the AND array, which allows any of the product terms to be summed, complemented, and TIB82S105BC used as an input to the AND array.

The state and output registers TIB82S105BC are positive-edgetriggered S/R flip-flops. These registers are unconditionally preset high during power up. Pin19 can be used to preset both registers or, by blowing the proper fuse, TIB82S105BC be converted to an output control function.

The TIB82S105BC is characterized for operation from 0°C to 75°C.
