THS6002

Supply voltage, V_CC+ to V_CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 V
Input voltage, V_I (driver and receiver) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . ±V_CC
Output current, I_O (driver) (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 800 mA
Output current, I_O (receiver) (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 mA
Differential input voltage, V_ID (driver and receiver) . . . . . . . . . . . . . .  . . . . . . . . . . 6 V
Continuous total power dissipation at (or below) T_A = 25 (see Note 1) . . . .  . 5.8 W
Operating free air temperature, T_A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40to 85
Storage temperature, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 to 125
Lead temperature, 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . 300

† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: The THS6002 incorporates a PowerPad on the underside of the chip. This acts as a heatsink and must be connected to a thermal dissipation plane for proper power dissipation. Failure to do so can result in exceeding the maximum junction temperature, which could permanently damage the device. See the Thermal Information section of this document for more information about PowerPad technology.

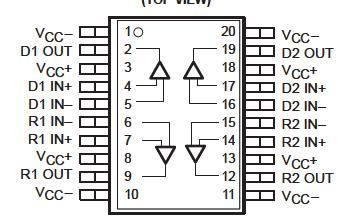

The THS6002 contains two high-current, high-speed drivers and two high-speed receivers. These drivers and receivers can be configured differentially for driving and receiving signals over low-impedance lines. The THS6002 is ideally suited for asymmetrical digital subscriber line (ADSL) applications where it supports the high-peak voltage and current requirements of that application. Both the drivers and the receivers are current feedback amplifiers designed for the high slew rates necessary to support low total harmonic distortion (THD) in ADSL applications. Separate power supply connections for each driver are provided to minimize crosstalk.
