THS4513RGTT

Number of Channels : 1
Mounting Style : SMD/SMT
Packaging : Reel
Shutdown : No
Input Offset Voltage : 4 mV
Maximum Operating Temperature : + 85 C
Operating Supply Voltage : 5.5 V
Common Mode Rejection Ratio (Min) : 90 dB (Typ)
Input Bias Current (Max) : 15.5 uA
Package / Case : QFN-16, 3 x 3
Slew Rate : 5100 V/us
Output Current : 440 mA


Features:

` Fully Differential Architecture
` Centered Input Common-mode Range
` Minimum Gain of 1V/V (0 dB)
` Bandwidth: 1600 MHz
` Slew Rate: 5100 V/s
` 1% Settling Time: 2.9 ns
` HD2: 75 dBc at 70 MHz
` HD3: 86 dBc at 70 MHz
` OIP2: 77 dBm at 70 MHz
` OIP3: 42 dBm at 70 MHz
` Input Voltage Noise: 2.2 nV/ (f >10 MHz)
` Noise Figure: 19.8 dB
` Output Common-Mode Control
` Power Supply:
` Voltage: 3 V (±1.5 V) to 5 V (±2.5 V)
` Current: 37.7 mA
` Power-Down Capability: 0.65 mA


Application

· 5 V Data Acquisition Systems High  Linearity ADC Amplifier
· Wireless Communication
· Medical Imaging
· Test and Measurement

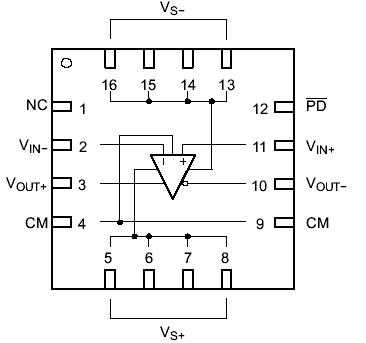

Pinout




Specifications

		UNIT
VS to VS+       Supply voltage		6 V
VI                     Input voltage		±VS
VID                   Differential input voltage		4 V
IO                     Output current(1)		200 mA
Continuous power dissipation		See Dissipation Rating Table
TJ                     Maximum junction temperature		150°C
TA                    Operating free-air temperature range		40°C to 85°C
Tstg                  Storage temperature range		65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds		300°C
ESD ratings	HBM	2000
	CDM	1500
	MM	100

Description

The THS4513 is a wideband, fully differential op amp designed for 3.35 V data acquisition systems. THS4513 has  very low noise at 2.2 nV/, and extremely low harmonic distortion of 75 dBc HD₂ and 86 dBc HD₃  at 70 MHz with 2-Vpp output, G = 0 dB, and 200-W load. Slew rate is very high at 5100 V/ms and with settling time of 2.9 ns to 1% (2 V step) it is ideal for  pulsed applications. It is designed for minimum gain  of 0 dB.

To allow for dc coupling to ADCs, its unique output common-mode control circuit of THS4513 maintains the output common-mode voltage within 5 mV offset (typ) from the set voltage, when set within 0.5 V of mid-supply, with less than 4 mV differential offset voltage. The common-mode set point is set to mid-supply by internal circuitry, which may be over-driven from an external source.

The input and output of THS4513 are optimized for best performance with their common-mode voltages set to mid-supply. Along with high performance at low power supply voltage, THS4513 makes for extremely high performance single supply 5 V data acquisition systems.

The THS4513 is offered in a Quad 16-pin leadless QFN package (RGT), and is characterized for operation over the full industrial temperature range from 40°C to 85°C.

Parameters:

Technical/Catalog Information	THS4513RGTT
Vendor	Texas Instruments (VA)
Category	Integrated Circuits (ICs)
Packaging	Digi-Reel?
Amplifier Type	Differential
Number of Circuits	1 - Single
Package / Case	16-VQFN
Slew Rate	5100 V/s
Gain Bandwidth Product	2.8GHz
Current - Supply	37.7mA
Current - Output / Channel	96mA
Voltage - Supply, Single/Dual (±)	3 V ~ 5.5 V, ±1.5 V ~ 2.75 V
Output Type	Differential
-3db Bandwidth	1.6GHz
Current - Input Bias	8A
Operating Temperature	-40°C ~ 85°C
Voltage - Input Offset	1000V
Drawing Number	296; 4203495; RGT; 16
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	THS4513RGTT THS4513RGTT 296 18594 6 ND 296185946ND 296-18594-6
