Product Details

Description



Features:

Wide Bandwidth: 3 GHz
High Slew Rate: 830 V/s
Low Voltage Noise: 2.4 nV/Hz
Single Supply: 5 V, 3 V
Quiescent Current: 18 mA


Application

Active Filter
ADC Driver
Ultrasound
Gamma Camera
RF/Telecom


Pinout

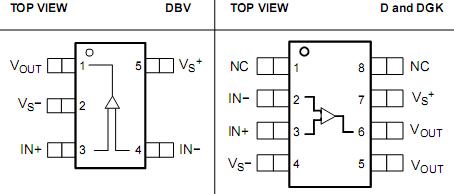

Connection Diagram


Specifications

  UNIT
VS          Supply voltage +6.0 V
VI          Input voltage ± Vs
IO          Output current 150 mA
VID        Differential input voltage ± 2 V
Continuous power dissipation See Dissipation Rating Table
TJ Maximum junction temperature, any condition (2) 150
Operating free-air temperature range, continuous operation, long-term reliability (2) 125
Tstg         Storage temperature range 65  to 150
Lead temperature: 1,6 mm (1/16 inch) from case for 10 seconds 300
ESD Ratings HBM 1600 V
CDM 1000 V
MM 100 V



Description

      The THS4304 is a wideband, voltage-feedback operational amplifier designed for use in high-speed analog signal-processing chains operating with a single 5-V power supply. Developed in the BiCom3 silicon germanium process technology, the THS4304 offers best-in-class performance using a single 5-V supply as opposed to previous generations of operational amplifiers requiring ±5-V supplies.

      The THS4304 is a traditional voltage-feedback topology that provides the following benefits: balanced inputs, low offset voltage and offset current, low offset drift, high common mode and power supply rejection ratio.

      The THS4304 is offered in 8-pin MSOP package (DGK), the 8-pin SOIC package (D), and the space-saving 5-pin SOT-23 package (DBV).
