THS4140

Features: `High Performance− 160 MHz −3 dB Bandwidth (VCC = ±15 V)− 450 V/µs Slew Rate− −79 dB, Third Harmonic Distortion at 1 MHz− 6.5 nV/Hz Input-Referred Noise`Differential Input/Differential Output− Balanced Outputs Reject Common-Mode Noise−...

product image

THS4140 Picture
See larger image
SeekIC No. : 004518881 Detail

THS4140: Features: `High Performance− 160 MHz −3 dB Bandwidth (VCC = ±15 V)− 450 V/µs Slew Rate− −79 dB, Third Harmonic Distortion at 1 MHz− 6.5 nV/Hz Input-Referred...

THS4140 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
THS4140
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`High Performance
− 160 MHz −3 dB Bandwidth (VCC = ±15 V)
− 450 V/µs Slew Rate
− −79 dB, Third Harmonic Distortion at 1 MHz
− 6.5 nV/Hz Input-Referred Noise
`Differential Input/Differential Output
− Balanced Outputs Reject Common-Mode Noise
− Reduced Second Harmonic Distortion
`Due to Differential Output Wide Power Supply Range
− VCC = 5 V Single Supply to ±15 V Dual Supply
`ICC(SD) = 880 µA in Shutdown Mode (THS4140)


Application

·Single-Ended To Differential Conversion
·Differential ADC Driver
·Differential Antialiasing
·Differential Transmitter And Receiver
·Output Level Shifter


Pinout

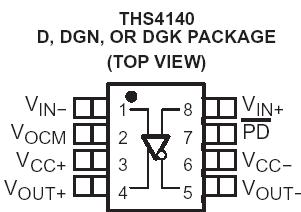

Connection Diagram


Specifications

Supply voltage, VCC− to VCC+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±16.5 V
Input voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±VCC
Output current, IO (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150 mA
Differential input voltage, VID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±6 V
Continuous total power dissipation . . . . . . . . . . . See Dissipation Rating Table
Maximum junction temperature, TJ (see Note 2) . . . . . . . . . . . . . . . . . . 150°C
Maximum junction temperature, TJ (see Note 3) . . . . . . . . . . . . . . . . . . 125°C
Operating free-air temperature, TA:C suffix . . . . . . . . . . . . . . . . .0°C to 70°C
Operating free-air temperature, TA:I suffix . . . . . . . . . . . . . . . −40°C to 85°C
Storage temperature, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . .−65°C to 150°C
Lead temperature 1,6 mm (1/16 Inch) from case for 10 seconds . . . . . .300°C
ESD ratings: HBM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2500 V
ESD ratings: CDM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1500 V
ESD ratings: MM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 V






Description

The THS414x is one in a family of fully differential input/differential output devices fabricated using Texas Instruments' state-of-the-art BiComI complementary bipolar process.

The THS414x is made of a true fully-differential signal path from input to output. This design leads to an excellent common-mode noise rejection and improved total harmonic distortion.
