THS4081

Features: `Ultralow 3.4 mA Per Channel Quiescent Current`High Speed 175 MHz Bandwidth (3 dB, G = 1) 230 V/s Slew Rate 43 ns Settling Time (0.1%)`High Output Drive, IO = 85 mA (typ)`Excellent Video Performance 35 MHz Bandwidth (0.1 dB, G = 1) 0.01% Differential Gain 0.05° Differential Phase`Very Lo...

product image

THS4081 Picture
See larger image
SeekIC No. : 004518875 Detail

THS4081: Features: `Ultralow 3.4 mA Per Channel Quiescent Current`High Speed 175 MHz Bandwidth (3 dB, G = 1) 230 V/s Slew Rate 43 ns Settling Time (0.1%)`High Output Drive, IO = 85 mA (typ)`Excellent Video P...

THS4081 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
THS4081
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Ultralow 3.4 mA Per Channel Quiescent Current
`High Speed
175 MHz Bandwidth (3 dB, G = 1)
230 V/s Slew Rate
43 ns Settling Time (0.1%)
`High Output Drive, IO = 85 mA (typ)
`Excellent Video Performance
35 MHz Bandwidth (0.1 dB, G = 1)
0.01% Differential Gain
0.05° Differential Phase
`Very Low Distortion
THD = 64 dBc (f = 1 MHz, RL = 150 W)
THD = 79 dBc (f = 1 MHz, RL = 1 kW)
`Wide Range of Power Supplies
VCC = ±5 V to ±15 V
`Available in Standard SOIC or MSOP
`PowerPADETM Package
`Evaluation Module Available

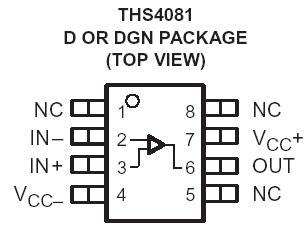

Pinout

Connection Diagram


Specifications

Supply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±16.5 V
Input voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±VCC
Output current, IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150 mA
Differential input voltage, VIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±4 V
Continuous total power dissipation . . . . . . . . . .See Dissipation Rating Table
Maximum junction temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . 150°C
Operating free-air temperature, TA: C-suffix . . . . . . . . . . . . . . .0°C to 70°C
Operating free-air temperature, TA: I-suffix . . . . . . . . . . . . .40°C to 85°C
Storage temperature, Tstg . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . 300°C


Description

The THS4081 and THS4082 are ultralow-power, high-speed voltage feedback amplifiers that are ideal for communication and video applications. These amplifiers operate off of a very low 3.4-mA quiescent current per channel and have a high output drive capability of 85 mA. The signal-amplifier THS4081 and the dual-amplifier THS4082 offer very good ac performance with 175-MHz bandwidth, 230-V/ms slew rate, and 43-ns settling time (0.1%). With total harmonic distortion (THD) of 64 dBc at f = 1 MHz, the THS4081 and THS4082 are ideally suited for applications requiring low distortion.
