Product Details

Description



Features:

`Ultra-low 1.6 nV//Hz Voltage Noise
`High Speed
100 MHz Bandwidth (G = 2 (1), 3 dB)
100 V/ms Slew Rate
`Stable in Gains of 2 (1) or Greater
`Very Low Distortion
THD = 72 dBc (f = 1 MHz, RL = 150 W)
THD = 90 dBc (f = 1 MHz, RL = 1 kW)
`Low 0.5 mV (Typ) Input Offset Voltage
`90 mA Output Current Drive (Typical)
`±5 V to ±15 V Typical Operation
`Available in Standard SOIC, MSOP
`PowerPADETM, JG, or FK Package
`Evaluation Module Available

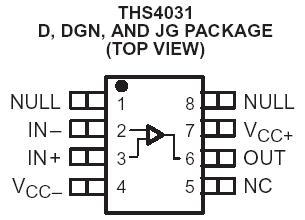

Pinout

Connection Diagram


Specifications

Supply voltage, VCC+ to VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..33 V
Input voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±VCC
Output current, IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 mA
Differential input voltage, VIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±4 V
Continuous total power dissipation . . . . . . . . . . . . . . . . . . See Dissipation Rating Table
Operating free-air temperature, TA: C-suffix . . . . . . . . . . . . . . . . . . . . . . .0°C to 70°C
Operating free-air temperature, TA:I-suffix . . . . . . . . . . . . . . . . . . . . . 40°C to 85°C
Operating free-air temperature, TA:M-suffix . . . . . . . . . . . . . . . . . . . .55°C to 125°C
Maximum junction temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150°C
Storage temperature, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . 300°C
Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds, JG package . ..300°C
Case temperature for 60 seconds, FK package . . . . . . . . . . . . . . . . . . . . . . . . . 260°C






Description

The THS4031 and THS4032 are ultralow-voltage noise, high-speed voltage feedback amplifiers that are ideal for applications requiring low voltage noise, including communication and imaging. The single-amplifier THS4031 and the dual-amplifier THS4032 offer very good ac performance with 100-MHz bandwidth, 100-V/ms slew rate, and 60-ns settling time (0.1%). The THS4031 and THS4032 are stable at gains of 2 (1) or greater.

These amplifiers THS4031 have a high drive capability of 90 mA and draw only 8.5-mA supply current per channel. With total harmonic distortion (THD) of 72 dBc at f = 1 MHz, the THS4031 and THS4032 are ideally suited for applications requiring low distortion.
