THS14F01

14-Bit Resolution
1 MSPS and 3 MSPS Speed Grades Available
On-Chip FIFO For Optimized Data Transfer
Differential Nonlinearity (DNL) ±0.6 LSB Typ
Integral Nonlinearity (INL) ±1.5 LSB Typ
Internal Reference
Differential Inputs
Programmable Gain Amplifier
 P Compatible Parallel Interface
Timing Compatible With TI 6000 DSP Family
3.3-V Single Supply
Power-Down Mode
Monolithic CMOS Design

Supply voltage, (AV_DD to AGND). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4V
Supply voltage, (DV_DD to DGND) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4V
Reference input voltage range, VBG . . . . . . . . . . . . . . . . . . 0.3 V to AV_DD + 0.3 V
Analog input voltage range. . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to AV_DD + 0.3 V
Digital input voltage range . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to DV_DD + 0.3 V
Operating free-air temperature range, T_A: C suffix . . . . . . . . . . . . . . . .0°C to 70°C
                                                                   I suffix . . . . . . . . . . . . . . .40°C to 85°C
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C
Lead temperature 1.6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . 260°C

The THS14F01 and THS14F03 are 14-bit, 1 MSPS/ 3 MSPS, single supply analog-to-digital converters with a FIFO, internal reference, differential inputs, programmable input gain, and an on-chip sample and hold amplifier.

Implemented with a CMOS process, the THS14F01 and THS14F03 have outstanding price/performance and power/speed ratios. The THS14F01 and THS14F03 are designed for use with 3.3-V systems, and with a high-speed mP compatible parallel interface, making them the first choice for solutions based on high-performance DSPs like the T_I TMS320C6000 series.

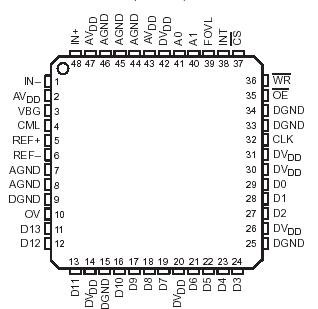

The THS14F01 and THS14F03 are available in a TQFP-48 package in standard commercial and industrial temperature ranges.
