THS1230

Features: 12-Bit Resolution, 30 MSPS Analog-to-Digital ConverterConfigurable Input Functions: Single-Ended Single-Ended With Offset Differential3.3-V Supply OperationInternal Voltage ReferenceOut-of-Range IndicatorPower-Down ModeIF UndersamplingApplication\Set Top Box (STB)CamcordersDigital Camera...

product image

THS1230 Picture
See larger image
SeekIC No. : 004518824 Detail

THS1230: Features: 12-Bit Resolution, 30 MSPS Analog-to-Digital ConverterConfigurable Input Functions: Single-Ended Single-Ended With Offset Differential3.3-V Supply OperationInternal Voltage ReferenceOut-of...

THS1230 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
THS1230
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

12-Bit Resolution, 30 MSPS Analog-to-Digital Converter
Configurable Input Functions:
Single-Ended
Single-Ended With Offset
Differential
3.3-V Supply Operation
Internal Voltage Reference
Out-of-Range Indicator
Power-Down Mode
IF Undersampling



Application

\Set Top Box (STB)
Camcorders
Digital Cameras
Copiers
Communications
Test Instruments
IF and Baseband Digitization


Pinout

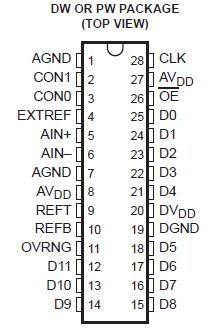

Connection Diagram


Specifications

Supply voltage range: AVDD to AGND, DVDD to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 to 4 V
                                   AGND to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 to 0.3 V
Reference voltage input range, REFT, REFB to AGND . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 to AVDD + 0.3 V
Analog input voltage range, AIN+, AIN to AGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 to AVDD + 0.3 V
Clock input voltage range, CLK to AGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 to AVDD + 0.3 V
Digital input voltage range, digital input to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 to DVDD + 0.3 V
Digital output voltage range, digital output to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 to DVDD + 0.3 V
Operating junction temperature range, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to 150°C
Storage temperature range, TSTG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Lead temperature 1,6 mm (1/16 in) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.


Description

The THS1230 is a CMOS, low power, 12-bit, 30 MSPS analog-to-digital converter (ADC) that operates with a 3.3-V supply. It gives circuit developers complete flexibility. The analog input to it can be either single-ended, single-ended with offset, or differential. The THS1230 provides a wide selection of voltage references to match the user's design requirements. For more design flexibility, the internal reference can be bypassed to use an external reference to suit the dc accuracy and temperature drift requirements of the application. The out-of-range output is used to monitor any out-of-range condition in the THS1230's input range.

The speed, resolution, and single-supply operation of the THS1230 are suited for applications in set top box (STB), video, multimedia, high-speed acquisition, and communications. The speed and resolution ideally suit charge-couple device (CCD) input systems such as digital copiers, digital cameras, and camcorders. The wide input voltage range between VREFB and VREFT allows the THS1230 to be designed into multiple systems.

The THS1230C is characterized for operation from 0°C to 70°C. The THS1230I is characterized for operation from 40°C to 85°C.
