Features:

Configurable Input Functions:
Single-Ended
Single-Ended With Offset
Differential
3.3-V Supply Operation
Internal Voltage Reference
Out-of-Range Indicator
Power-Down Mode

Application

Camcorders
Digital Cameras
Copiers
Communications
Test Instruments
Baseband Digitization

Pinout

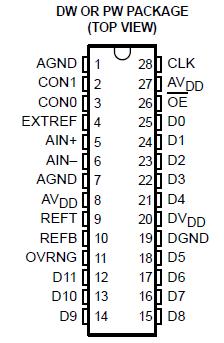

Connection Diagram

Specifications

Supply voltage range: AV_DD to AGND, DV_DD to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 to 4 V
AGND to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 to 0.3 V
Reference voltage input range, REFT, REFB to AGND . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 to AV_DD + 0.3 V
Analog input voltage range, AIN+, AIN to AGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 to AV_DD + 0.3 V
Clock input voltage range, CLK to AGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 to AV_DD + 0.3 V
Digital input voltage range, digital input to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 to DV_DD + 0.3 V
Digital output voltage range, digital output to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 to DV_DD + 0.3 V
Operating junction temperature range, T_J . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . 40°C to 150°C
Storage temperature range, T_STG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . 65°C to 150°C
Lead temperature 1,6 mm (1/16 in) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

Description

The THS1215 is a CMOS, low power, 12-bit, 15 MSPS analog-to-digital converter (ADC) that operates with a 3.3-V supply. It gives circuit developers complete flexibility. The analog input to the THS1215 can be either single-ended, single-ended with offset, or differential. The THS1215 provides a wide selection of voltage references to match the user's design requirements. For more design flexibility, the internal reference can be bypassed to use an external reference to suit the dc accuracy and temperature drift requirements of the application. The out-of-range output is used to monitor any out-of-range condition in the THS1215's input range.

The speed, resolution, and single-supply operation of the THS1215 are suited for applications in video, multimedia, high-speed acquisition, and communications. The speed and resolution ideally suit charge-couple device (CCD) input systems such as digital copiers, digital cameras, and camcorders. The wide input voltage range between VREFB and VREFT allows the THS1215 to be designed into multiple systems.

The THS1215C is characterized for operation from 0°C to 70°C. The THS1215I is characterized for operation from 40°C to 85°C.
