Features: · Simultaneous Sampling of 2 Single-Ended
· Signals or 1 Differential Signal
· Signal-to-Noise Ratio: 68 dB at fI = 2 MHz
· Differential Nonlinearity Error: ±1 LSB
· Integral Nonlinearity Error: ±1.5 LSB
· Auto-Scan Mode for 2 Inputs
· 3-V or 5-V Digital Interface Compatible
· Low Power: 218 mW Max at 5 V
· Power Down: 1 mW Max
· 5-V Analog Single Supply Operation
· Internal Voltage References . . . 50 PPM/°C and ±5% Accuracy
· Glueless DSP Interface
· Parallel mC/DSP Interface applications
· Radar Applications
· Communications
· Control Applications
· High-Speed DSP Front-End
· Automotive ApplicationsApplication· Radar Applications
· Communications
· Control Applications
· High-Speed DSP Front-End

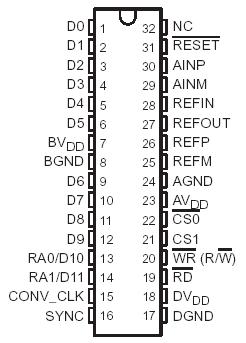

· Automotive ApplicationsPinout
SpecificationsSupply voltage range: DGND to DVDD .............................0.3 V to 8.5 V
BGND to BVDD .................................................................0.3 V to 8.5 V
AGND to AVDD .................................................................0.3 V to 8.5 V
Analog input voltage range AGND ..................... 0.3 V to AVDD + 1.5 V
Reference input voltage ...........................0.3 + AGND to AVDD + 0.3 V
Digital input voltage range .......................0.3 V to BVDD/DVDD + 0.3 V
Operating virtual junction temperature range, TJ .........40°C to 150°C
Operating free-air temperature range: THS1209C .............0°C to 70°C
THS1209I ........................................................................40°C to 85°C
Storage temperature range, Tstg ..................................85°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for .10 seconds 260°C
` Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
DescriptionThe THS1209 is a CMOS, low-power, 12-bit, 8 MSPS analog-to-digital converter (ADC). The speed, resolution, bandwidth, and single-supply operation of THS1209 are suited for applications in radar, imaging, high-speed acquisition, and communications. A multistage pipelined architecture with output error correction logic provides for no missing codes over the full operating temperature range. Internal control registers allow for programming the ADC into the desired mode. The THS1209 consists of two analog inputs, which are sampled simultaneously. These inputs can be selected individually and configured to single-ended or differential inputs. Internal reference voltages for the ADC (1.5 V and 3.5 V) are provided. An external reference can also be chosen to suit the dc accuracy and temperature drift requirements of the application.
The THS1209C is characterized for operation from 0°C to 70°C, and the THS1209I is characterized for operation from 40°C to 85°C.
THS1209 Data Sheet
