ADC (A/D Converters) 10-Bit 6 MSPS Quad Ch DSP/uP Ifc
60 MSPS Maximum Sample Rate
10-Bit Resolution
No Missing Codes
On-Chip Sample and Hold
73 dB Spurious Free Dynamic Range at fin = 15.5 MHz
5 V Analog and Digital Supply
3 V and 5 V CMOS Compatible Digital Output
9.5 Bit ENOB at fIN = 31 MHz
60 dB SNR at fIN = 31 MHz
82 MHz Bandwidth
Internal or External Reference
Buffered 900 W Differential Analog Input
Wireless Local Loop
Wireless Internet Access
Cable Modem Receivers
Medical Ultrasound
Magnetic Resonant Imaging
Supply voltage range: AVDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
DVDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
DRVDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Voltage between AVSS and DVSS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 0.5 V
Voltage between DRVDD and DVDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 5 V
Voltage between AVDD and DVDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 5 V
Digital data output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to DVDD+0.3 V
CLK peak input current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 mA
Peak total input current (all inputs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 mA
Operating free-air temperature range, TA:THS1060C . . . . . . . . . . . . . . . . .0°C to 70°C
THS1060I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40°C to 85°C
Storage temperature range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from the case for 10 seconds . . . . . .260°C

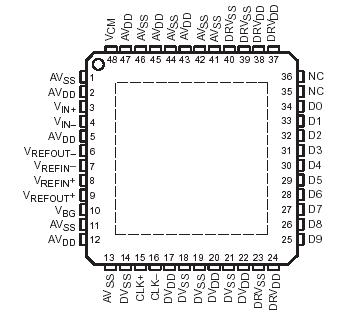

The THS1060 is a high speed low noise 10-bit CMOS pipelined analog-to-digital converter. A differential sample and hold minimizes even order harmonics and allows for a high degree of common mode rejection at the analog input. A buffered analog input allows for operation with a constant analog input impedance, and prevents transient voltage spikes from feeding backward to the analog input source. Full temperature DNL performance allows for industrial application with the assurance of no missing codes. The THS1060 can operate with either internal or external references. Internal reference usage selection is accomplished simply by externally connecting reference output terminals to reference input terminals. Packaged in a small 48-pin quad flat-pack, the THS1060 makes use of Texas Instruments PowerPADE technology. The die of the THS1060 is bonded directly to a copper alloy plate which is exposed on the bottom of the package. When soldered to a ground land, the PowerPADE provides superior heat dissipation and thermal performance ideal for industrial applications in high temperature environments.
