THN6501F

Features: · Low Noise FigureNF = 1.0 dB at f = 1 GHz, VCE= 3 V, IC= 7 mA · High GainMAG = 11.5 dB at f = 1 GHz, VCE= 10 V, IC= 20 mA· High Transition FrequencyfT = 7 GHz at f = 1 GHz, VCE=10 V, IC=30 mAApplicationLNA and wide band amplifier up to GHz rangePinoutSpecifications Symbol Para...

product image

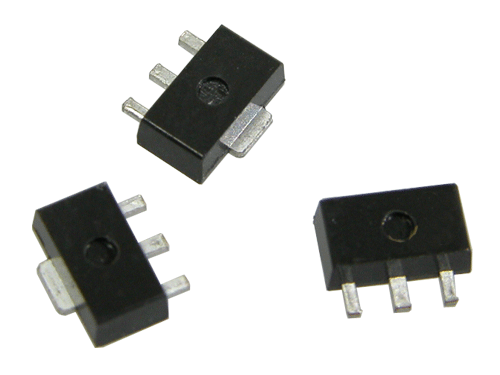

THN6501F Picture
See larger image
SeekIC No. : 004518776 Detail

THN6501F: Features: · Low Noise FigureNF = 1.0 dB at f = 1 GHz, VCE= 3 V, IC= 7 mA · High GainMAG = 11.5 dB at f = 1 GHz, VCE= 10 V, IC= 20 mA· High Transition FrequencyfT = 7 GHz at f = 1 GHz, VCE=10 V, IC=3...

THN6501F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
THN6501F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Low Noise Figure
NF = 1.0 dB at f = 1 GHz, VCE= 3 V, IC= 7 mA
· High Gain
MAG = 11.5 dB at f = 1 GHz, VCE= 10 V, IC= 20 mA
· High Transition Frequency
fT = 7 GHz at f = 1 GHz, VCE=10 V, IC=30 mA






Application

LNA and wide band amplifier up to GHz range




Pinout






Specifications

Symbol
Parameter
Ratings
Unit
VCBO
 Collector to Base Breakdown Voltage
25
V
VCEO
 Collector to Emitter Breakdown Voltage
12
V
VEBO
 Emitter to Base Breakdown Voltage
2.5
V
IC
 Collector Current (DC)
100

mA
PT
 Total Power Dissipation
400

mW
TSTG
 Storage Temperature
-65 ~150
TJ
 Operating Junction Temperature
150





Description

THN6501F Low noise and high gain small signal RF transistor
THN6501F is used as low noise amplifier, gain amplifier, mixer and VCO for VHF and UHF band applications, such as FRS, cordless phone, TV tuner, RF modulator, wireless LAN and GPS.
