PinoutDescription Low noise and high gain small signal RF transistor THN6301S is used as low noise amplifier, gain amplifier, mixer and VCO for VHF and UHF band applications, such as FRS, cordless phone, TV tuner, RF modulator, wireless LAN and GPS. The THN6301S is designed as one k...

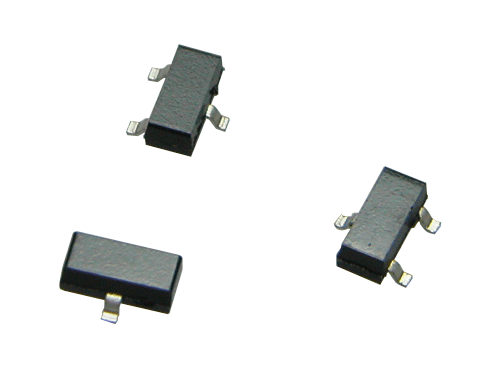

See larger image

SeekIC No. : 004518770 Detail

THN6301S: PinoutDescription Low noise and high gain small signal RF transistor THN6301S is used as low noise amplifier, gain amplifier, mixer and VCO for VHF and UHF band applications, such as FR...

THN6301S Data Sheet

Get Latest Price

Part Number:: THN6301S
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

THN6201 evaluate
Features: · Low Noise Figure NF = 1.1 dB Typ. @ f = 1 GHz, VCE = 3 V, IC = 5 mA NF = 1.5 dB Typ. @...
THN6201E evaluate
Features: · Low Noise FigureNF = 1.1 dB Typ. @ f = 1 GHz, VCE = 3 V, IC = 5 mANF = 1.5 dB Typ. @ f...
THN6201S evaluate
Features: · Low Noise FigureNF = 1.1 dB Typ. @ f = 1 GHz, VCE = 3 V, IC = 5 mANF = 1.5 dB Typ. @ f...

Product Details

Description

Pinout

Description

Low noise and high gain small signal RF transistor

THN6301S is used as low noise amplifier, gain amplifier, mixer and VCO for VHF and UHF band applications, such as FRS, cordless phone, TV tuner, RF modulator, wireless LAN and GPS.

The THN6301S is designed as one kind of NPN planer RF transistor that is a low Noise figure and good associated gain performance at UHF,VHF and Microwave frequencies. Also this device is suitable for a high density surface mount since transistor has been SOT23 package.

Features of the THN6301S are:(1)low noise figure N.F = 1.1dB TYP. @ f=1GHz, VCE=8V, Ic=5mA; (2)high gain MAG = 16.5dB TYP. @ f=1GHz, VCE=8V, Ic=15mA; (3)high transition frequency fT = 10GHz TYP. @ f=1GHz, VCE=8V, Ic=15mA.

The absolute maximum ratings of the THN6301S can be summarized as:(1)Collector-Base Voltage: 25 V;(2)Collector-Emitter Voltage: 12 V;(3)Emitter-Base Voltage: 2.5 V;(4)Collector Current (DC): 65 mA;(5)Total Power Dissipation: 150 mW;(6)Storage Temperature: -65 to 150 ;(7)Operating Junction Temperature: 150 . If you want to know more information about THN6301S, please download the datasheet in www.seekic.com or www.chinaicmart.com .
