THN6201Z

Features: · Low Noise FigureNF = 1.1 dB Typ. @ f = 1 GHz, VCE = 3 V, IC = 5 mANF = 1.5 dB Typ. @ f = 2 GHz, VCE = 3 V, IC = 5 mA· High Power GainMAG = 18.5 dB Typ. @ f = 1 GHz, VCE = 3 V, IC = 15 mA13 dB Typ. @ f = 2 GHz, VCE = 3 V, IC = 15 mA· High Transition FrequencyfT = 12 GHz Typ. @ VCE = 3 V...

product image

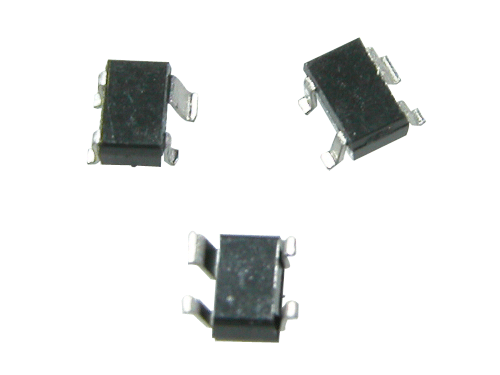

THN6201Z Picture
See larger image
SeekIC No. : 004518767 Detail

THN6201Z: Features: · Low Noise FigureNF = 1.1 dB Typ. @ f = 1 GHz, VCE = 3 V, IC = 5 mANF = 1.5 dB Typ. @ f = 2 GHz, VCE = 3 V, IC = 5 mA· High Power GainMAG = 18.5 dB Typ. @ f = 1 GHz, VCE = 3 V, IC = 15 mA...

THN6201Z Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
THN6201Z
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Low Noise Figure
NF = 1.1 dB Typ. @ f = 1 GHz, VCE = 3 V, IC = 5 mA
NF = 1.5 dB Typ. @ f = 2 GHz, VCE = 3 V, IC = 5 mA
· High Power Gain
MAG = 18.5 dB Typ. @ f = 1 GHz, VCE = 3 V, IC = 15 mA
13 dB Typ. @ f = 2 GHz, VCE = 3 V, IC = 15 mA
· High Transition Frequency
fT = 12 GHz Typ. @ VCE = 3 V, IC = 15 mA




Application

LNA and wide band amplifier up to GHz range




Pinout






Specifications

VCBO Collector to Base Breakdown Voltage.........20V
VCEO Collector to Emitter Breakdown Voltage......12V
VEBO Emitter to Base Breakdown Voltage...........2.5V
IC Collector Current (DC)....................................35mA
PT Total Power Dissipation...............................150mW
TSTG Storage Temperature.......................-65 ~ 150
TJ Operating Junction Temperature....................150
Caution : ESD sensitive device




Description

THN6201Z Low noise and high gain small signal RF transistor
THN6201Z is used as low noise amplifier, gain amplifier, mixer and VCO for VHF and UHF band applications, such as FRS, cordless phone, TV tuner, RF modulator, wireless LAN and GPS.
