TH7834C

• 6.5 m x 6.5 m Photodiode Pixel, at 6.5 m Pitch
• 2 x 2 Outputs
• High Output Data Rate: 4 x 5 MHz
• High Dynamic Range: 10000: 1
• Antiblooming and Exposure Time Control
• Very Low Lag

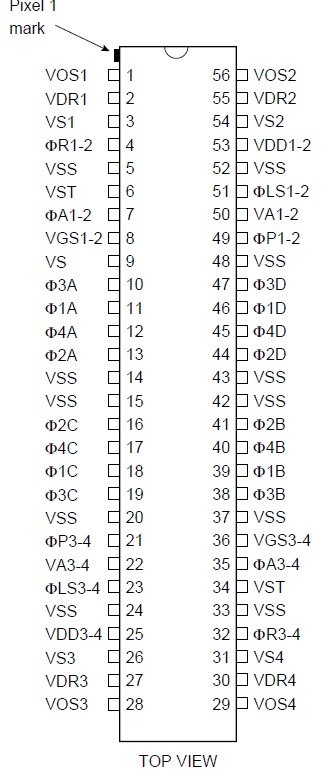

• 56 lead 0.6" DIL Package

Storage Temperature ................................... -55°C to + 150°C

Operating Temperature ................................. 0°C to + 70°C

Thermal Cycling.........................................................15°C/mm

Maximum Voltage:

• Pins: 4, 6, 7, 8, 10, 11, 12, 13, 16, 17, 18,
19, 21, 23, 32, 34, 35, 36, 38, 39, 40, 41, 44,
45, 46, 47, 49, 51...............................................-0.3V to + 15V

• Pins: 2, 3, 22, 25, 26, 27, 30,
31, 50, 53, 54, 55............................................-0.3V to + 15.5V

• Pins: 5, 9, 14, 15, 20, 24, 33, 37, 42, 43, 48, 52 .. Ground 0V
