TH71102

 Double superhet architecture for high degree of image rejection
 FSK for digital data and FM reception for analog signal transmission
FM/FSK demodulation with phase-coincidence demodulator
 Low current consumption in active mode and very low standby current
 Switchable LNA gain for improved dynamic range
RSSI allows signal strength indication and ASK detection

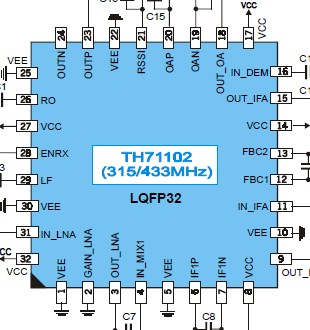

Surface mount package LQFP32

General digital and analog 315 MHz or 433 MHz ISM band usage
 Low-power telemetry
Alarm and security systems
 Keyless car and central locking
Pagers

The TH71102 receiver IC consists of the following building blocks:
PLL synthesizer (PLL SYNTH) for generation of the first and second local oscillator signals LO1 and LO2
Parts of the PLL SYNTH are the high-frequency VCO1, the feedback dividers DIV_8 and DIV_2,a phase-frequency detector (PFD) with charge pump (CP) and a crystal-based reference oscillator (RO)
Low-noise amplifier (LNA) for high-sensitivity RF signal reception
First mixer (MIX1) for down-conversion of the RF signal to the first IF (IF1)
second mixer (MIX2) for down-conversion of the IF1 to the second IF (IF2)
IF amplifier (IFA) to amplify and limit the IF2 signal and for RSSI generation
 Phase coincidence demodulator (DEMOD) with third mixer (MIX3) to demodulate the IF signal
 Operational amplifier (OA) for data slicing, filtering and ASK detection
Bias circuitry for bandgap biasing and circuit shutdown
