Features:

· Supports VGA to UXGA Resolutions (Pixel
  Rates up to 165 MHz)
· Digital Visual Interface (DVI) 1.0
  Specification Compliant1
· Integrated 165 MHz Triple 8-Bit Video DAC
  Provides VGA Outputs
· True-Color, 24 Bits/Pixel, 16.7 M Colors
· Skew Tolerant Up to One Full Input Clock Cycle
· 4x Over-Sampling
· Laser Trimmed Input Stage for Optimum
  Fixed Impedance Matching
· Reduced Power Consumption - 1.8 V Core
  Operation With 3.3 V I/Os and Supplies2
· Lowest Noise and Best Power Dissipation
  Using PowerPAD Packaging
· Advanced Technology Using Texas
  Instruments 0.18 mm EPIC-5 CMOS Process
· HSYNC Regeneration Circuitry3


Pinout

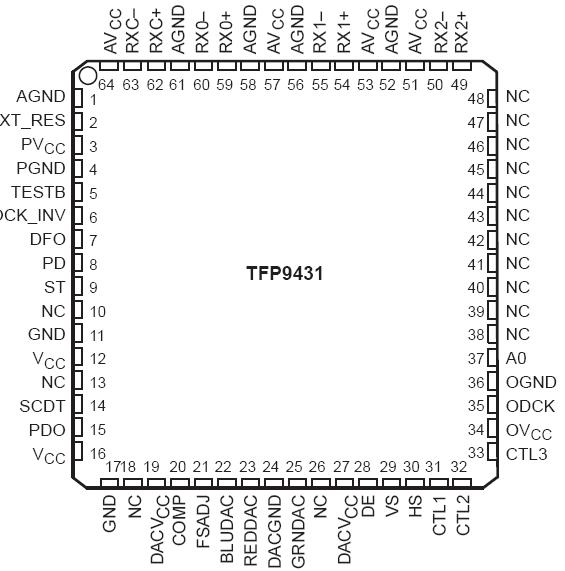

Connection Diagram


Specifications

Supply voltage range, VCC, AVCC, OVCC, PVCC, DACVCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-0.3 V to 4 V
Input voltage range, logic/analog signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 V to 4 V
Operating ambient temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -65°C to 150°C
Case temperature for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .260°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .260°C
Package power dissipation/PowerPADE: Soldered (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.3 W
Not soldered (see Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.7 W
ESD Protection, all pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 KV Human Body Model
JEDEC latchup (EIA/JESD78) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100 mA
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. Specified with PowerPADE bond pad on the backside of the package soldered to a 2 oz. Cu plate PCB thermal plane. Specified
at maximum allowed operating temperature, 70°C.
2. PowerPADE bond pad on the backside of the package is not soldered to a thermal plane. Specified at maximum allowed operating
temperature, 70°C.


Description

The TFP9431 is a PanelBus digital display product, part of a comprehensive family of end-to-end DVI 1.0 compliant solutions. Targeted at premium digital CRT monitors, the TFP9431 finds applications in designs requiring a high-speed digital interface with analog output.

The TFP9431 integrates a 165 MHz PanelBus receiver core with a 165 MHz triple 8-bit video DAC to provide a single chip solution for enabling next generation CRT monitors requiring digital connectivity and enhanced display quality. The TFP9431 supports display resolutions up to UXGA (1600 x 1200) at 60 Hz and a 24-bit color depth (16.7 M colors).

PowerPADE advanced packaging technology results in best in class power dissipation, footprint, and ultra-low ground inductance.

The TFP9431 combines PanelBus circuit innovation with TI's advanced 0.18 mm EPIC-5 CMOS process technology along with PowerPAD package technology to provide a reliable, low-power, low-noise, high-speed digital interface solution.
