TFP6422

The Texas Instruments TFP6422 and TFP6424 are PanelBusE flat panel display products, part of a comprehensive family of end-to-end DVI 1.0 compliant solutions. Targeted primarily at digital entertainment / set-top-box applications, Internet PCs/appliances, PC-to-TV, and connectivity to DVD players and digital camcorders/cameras, the TFP6422/6424 finds applications in any design requiring a high-speed digital interface combined with TV-out support.

The scalable (1.1 V to 1.8 V) low-swing digital pixel interface provides a low-EMI and high-speed bus that connects seamlessly with Intels Digital Video Out (DVO) port, perfectly linking the graphics controller and the DVI transmitter. The DVI interface supports display resolutions up to UXGA at 165 MHz in 24-bit true color pixel format.

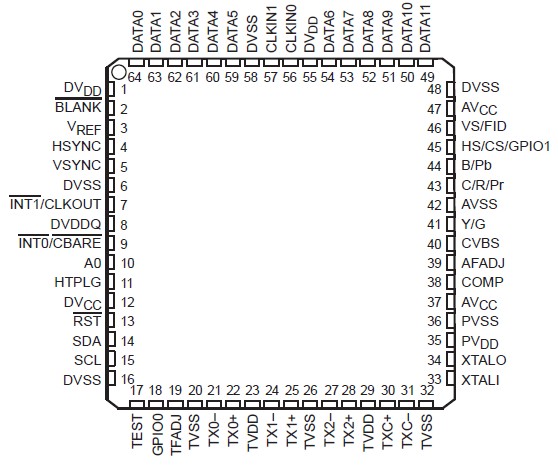

The TFP6422/6424 combines a high performance DVI transmitter and a high performance NTSC/PAL video encoder into a single chip in a compact 64-pin TQFP package, providing a costeffective video output solution for the most demanding multimedia applications. The video encoder provides advanced horizontal and vertical scaling for overscan compensation and features a 5-tap adaptive antiflicker filter. These features combine to produce high quality display of noninterlaced data on traditional interlaced TV.

The TFP6422/6424 combines PanelBusE circuit innovation with TIs advanced 0.18 mm EPIC-5E CMOS process technology along with TI PowerPADE ultra-low ground inductance package technology to provide a reliable, low powered, low noise solution with integrated high-speed digital interface and highest quality TV
output.
