TFP201A

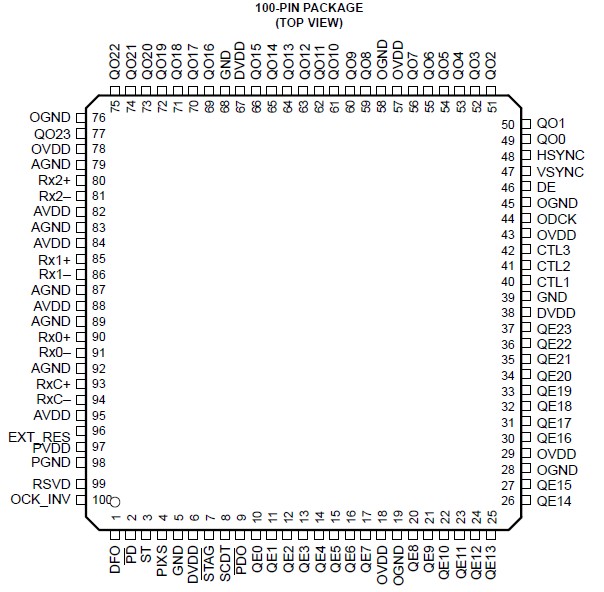

Supply voltage range, DV_DD, AV_DD, OV_DD, PV_DD . . . . . . . . . . . .. . . . . . . . . . . . -0.3 V to 4 V
Input voltage range, logic/analog signals . . . . . . . . . . . . .  . . . . . . . . . . . . . . . -0.3 V to 4 V
Operating ambient temperature range . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . -65°C to 150°C
Case temperature for 10 seconds . . . . . . . . . . . . . . . .  . . . . . . . . . .. . . . . . . . . . . . . 260°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . .. . . . . . . . . . . 260°C
Package power dissipation/PowerPAD™: Soldered (see Note 1) . . . . . . . . . . . . . . . . 4.3 W
                                                               Not soldered (see Note 2) . .. . . . .  . . . . . . . 2.7 W
ESD Protection, all pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5 KV Human Body Model
JEDEC latchup (EIA/JESD78) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 mA

The Texas Instruments TFP201 and TFP201A are TI PanelBus™ flat panel display products, part of a comprehensive family of end-to-end DVI 1.0 compliant solutions. Targeted primarily at desktop LCD monitors and digital projectors, the TFP201/201A finds applications in any design requiring high-speed digital interface.

The TFP201A  supports display resolutions up to SXGA in 24-bit true color pixel format. The TFP201/201A offers design flexibility to drive one or two pixels per clock, supports TFT or DSTN panels, and provides an option for time staggered pixel outputs for reduced ground bounce.

PowerPAD™ advanced packaging technology results in best of class power dissipation, footprint, and ultra-low ground inductance.

The TFP201A  combines PanelBus™ circuit innovation with TI's advanced 0.18-m EPIC-5™ CMOS process technology, along with TI PowerPAD™ package technology to achieve a reliable, low-powered, low noise, high-speed digital interface solution.
